Product Details:
|
Name: | Ultrasonic Sonochemistry | Frequency: | 20Khz |
---|---|---|---|
Power: | 2000W | Weight: | 35Kg |
Generator: | Digital Mode | Control: | Remote Control |
Application: | Dispersing | Probe: | Different Size And Type Optional |
Capacity: | More Than 100L | ||
Highlight: | ultrasound sonochemistry,ultrasonic homogenization |
High Pressure Ultrasonic Sonochemistry Equipment 2000W With Glass Container
Our system including below parts,

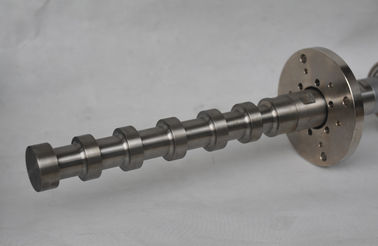

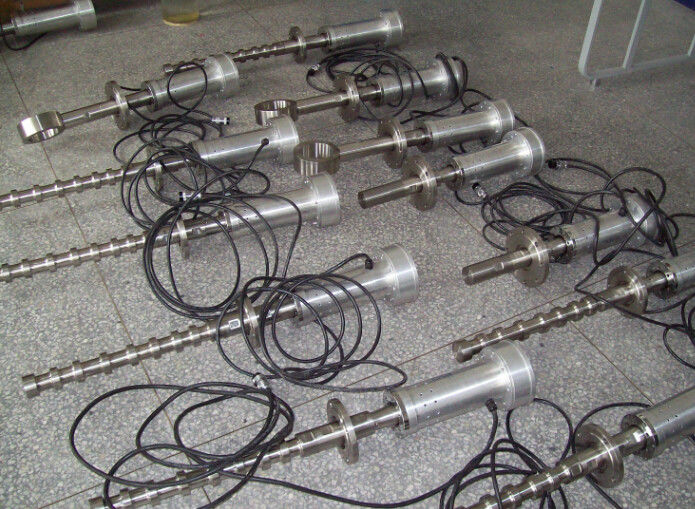

Ultrasonic probe (Titanium materials)
Ultrasonic digital generator
Flow chamber (Stainless steel materials)
Power cord
Wooden Package
Specifications:
Model | HSS11B-EB | HSS17B-ZB | HSS57B-ZB | HSS59B-ZB | HSS61B-ZB |
Frequency | 40±1 KHz | 20±1 KHz | 20±1 KHz | 20±1 KHz | 20±1 KHz |
Power | 100 W | 1000 W | 1500 W | 2000 W | 3000 W |
Voltage | 220±10% V | 220±10% V | 220±10% V | 220±10% V | 220±10% V |
Temperature | 150 ℃ | 150 ℃ | 300 ℃ | 300 ℃ | 300 ℃ |
Pressure | Normal | Normal | 35 MPa | 35 MPa | 35 MPa |
Intensity of sound | >10 W/cm² | >10 W/cm² | >30 W/cm² | >40 W/cm² | >60 W/cm² |
Max Capacity | > 100M L/Min | > 5 L/Min | > 15 L/Min | > 20 L/Min | > 30 L/Min |
Material Of Tip Head | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Dispersing principle:
When sonicating liquids the sound waves that propagate into the liquid media in alternating high-pressure ( compression ) and low-pressure ( rarefaction ) cycles. This applies mechanical stress on the attracting electrostatic forces. Ultrasonic cavitation in liquids causes high speed liquid jets of up to 1000km/h (approx. 600mph). Such jets press liquid at high pressure between the particles and separate them from each other. Smaller particles are accelerated with the liquid jets and collide at high speeds. This makes ultrasound an effective means for the dispersing and deagglomeration, but also for the milling and fine grinding of micron-size particles.
Main advantages:
1. 8 IN 1 Control box,
2. One button control several systems at the same time,
3. Explosion levels,
4. Intelligent control,
5. Remote control.
6. Time-saving, Lower power comsumer
7. A significant reduction in maintenance costs
Other Applications:
WHY CHOOSE ALTRASONIC ?
High pressure Ultrasonic mixing system / continuous / pharmaceutical , with glass container
