Product Details:
|
| Name: | Ultrasonic Sonochemistry | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 3000W | Weight: | 35Kg |
| Highlight: | ultrasound sonochemistry,sonochemistry equipment |
||

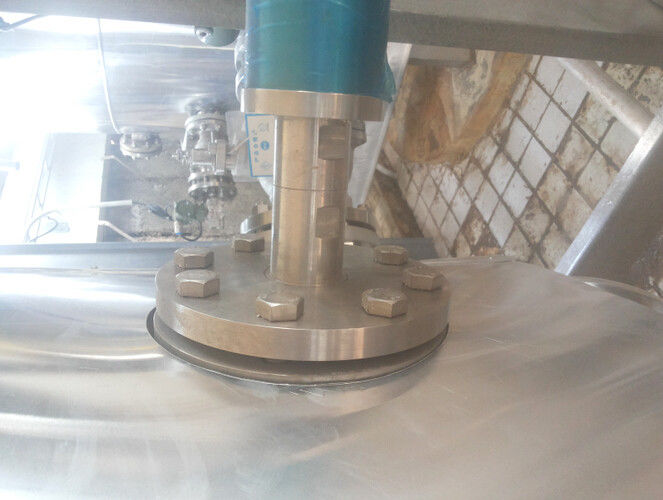

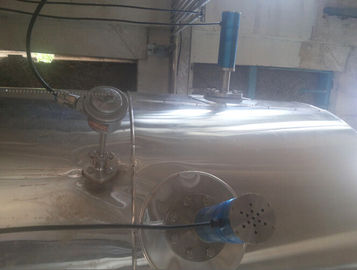

Acrylic Structure Ultrasonic Homogenization Equipment , High Pressure Homogenizer
Supply ultrasonic solutions for Sinopec Group.
Add the ultrasonic device into the original processing technology, the use of ultrasonic cavitation, dispersing and deagglomerating the acrylic structure, to make the structure of acrilic more uniform and also speed up the extraction speed, improve productivity rate of 30%.
Specifications:
| Model | HSS11B-EB | HSS17B-ZB | HSS57B-ZB | HSS59B-ZB | HSS61B-ZB |
| Frequency | 40±1 KHz | 20±1 KHz | 20±1 KHz | 20±1 KHz | 20±1 KHz |
| Power | 100 W | 1000 W | 1500 W | 2000 W | 3000 W |
| Voltage | 220±10% V | 220±10% V | 220±10% V | 220±10% V | 220±10% V |
| Temperature | 150 ℃ | 150 ℃ | 300 ℃ | 300 ℃ | 300 ℃ |
| Pressure | Normal | Normal | 35 MPa | 35 MPa | 35 MPa |
| Intensity of sound | ＞10 W/cm² | ＞10 W/cm² | ＞30 W/cm² | ＞40 W/cm² | ＞60 W/cm² |
| Max Capacity | ＞ 100M L/Min | ＞ 5 L/Min | ＞ 15 L/Min | ＞ 20 L/Min | ＞ 30 L/Min |
| Material Of Tip Head | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Dispersing principle:
When sonicating liquids the sound waves that propagate into the liquid media in alternating high-pressure ( compression ) and low-pressure ( rarefaction ) cycles. This applies mechanical stress on the attracting electrostatic forces. Ultrasonic cavitation in liquids causes high speed liquid jets of up to 1000km/h (approx. 600mph). Such jets press liquid at high pressure between the particles and separate them from each other. Smaller particles are accelerated with the liquid jets and collide at high speeds. This makes ultrasound an effective means for the dispersing and deagglomeration, but also for the milling and fine grinding of micron-size particles.
Main advantages:
1. 8 IN 1 Control box,
2. One button control several systems at the same time,
3. Explosion levels,
4. Intelligent control,
5. Remote control.
6. Time-saving, Lower power comsumer
7. A significant reduction in maintenance costs
Other Applications:
WHY CHOOSE ALTRASONIC ?
3000W 20Khz Ultrasonic Sonochemistry for acrylic structure , Liquid Disperse Equipment
