20Khz High Power Vibration Ultrasonic Sonochemistry For Cavitation Erosion System / Batch

20Khz High Power Vibration Ultrasonic Sonochemistry For Cavitation Erosion System / Batch
20Khz High Power Vibration Ultrasonic Sonochemistry For Cavitation Erosion System / Batch 20Khz High Power Vibration Ultrasonic Sonochemistry For Cavitation Erosion System / Batch 20Khz High Power Vibration Ultrasonic Sonochemistry For Cavitation Erosion System / Batch

Large Image :  20Khz High Power Vibration Ultrasonic Sonochemistry For Cavitation Erosion System / Batch

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSS17B-ZB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in wooden carton
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 1000pcs per month

20Khz High Power Vibration Ultrasonic Sonochemistry For Cavitation Erosion System / Batch

Description
Name: Ultrasonic Sonochemistry Frequency: 20Khz
Power: 500W Weight: 35Kg
Highlight:

ultrasound sonochemistry

,

sonochemistry equipment

20Khz High Power Vibration Ultrasonic Sonochemistry For Cavitation Erosion System / Batch



Summary



As we know, measurement, comparison and evaluation of the wear resistance materials is necessary during the anti-wear (wear) material research progress. Such as lubricants Research and Development,the selection of Impeller materials, the design of Centrifugal Pump and so on. Certainly, using ultrasonic is an acknowledged method in the cavitation erosion materials test.

However, the test results are usually influenced by the intricate ultrasonic equipment and hypersensitive test process. It leads the test results unreliable or lack of comparable.

Therefore, American Society for Testing Materials has organized a group of scientists to conducted a series of tests, And then they have compiled the standard of cavitation erosion materials test (ASTM) G32-06. This standard specifies the standard in ultrasonic measurements cavitation erosion materials test, it is also considered the various factors that affect of cavitation erosion materials. Therefore, measured the test result of specimen cavitations erosion rate by this standard is objective and reliable, and could be compared with similar test specimen.



Altrasonic has created China's first High power vibration ultrasonic cavitation erosion system in full accordance with American Society for testing Materials ASTM G32-06 standard.  In additional, we cooperated with the Friction and Wear of Materials Research domestic authority---Lanzhou Institue of chemical physics Jointly development research. Lanzhou Institue of chemical physics is in the leading of in the research materials cavitation erosion, and has a State Key Laboratory of Solid Lubrication. We Combine their own strengths in the ultrasonic field of research and development, therefore our high-power ultrasonic Vibration ultrasonic cavitation erosion system has been endorsed unanimously by the user.



Main Characteristic:



1. In full accordance with American Society for Testing Materials ASTM G32-06 standard design and manufacturing

2. The sample amplitude can be adjusted by the user required

3. Test fluid temperature can be real-time monitoring and adjustment, ensure the accuracy of the experiment.

4. Sample test Interval can be adjusted by the user required

5. Sample amplitude, frequency parameter can be Real-time display,Monitoring and adjustment

6. Ultrasonic vibration stable, reliable, less fever heat.

7. All of System parameters through standard testing, result of a measurement have Highly comparable.



System compose and parameter



1.Basic compose



High-power cavitation erosion ultrasonic system is composed of three parts:

ultrasonic system, constant temperature oil bath container system and frame lifting system.

Ultrasonic system is the main core part of the complete system. It is used to supply largest power vibration for the system, in order to makes amplitude and frequency to reach standard requirements. Constant temperature oil bath container system is used to supply constant temperature liquid environment for insuring the test specimen test accuracy. (Temperature change will infuse erosion rate directly) frame lifting system is used to fix and adjust complete system, and designed sound proof function.



2. Working method



Placed the standard test specimen on the bracket tray; if with screw test specimen, please install on the horn directly. Then immerse the test specimen into the test liquid, and turn on the system. Please adjust the system every parameters according to experimental requirements, and observe the vibration frequency, amplitude ect through signal control system. Owing to it will produce larger noise when it works; there is a sound proof enclosure for reducing noise damage to people’s ear.



3Main technical indicators



Oscillator system main indicators



Transducer type HS-5020-4D
Working frequency 20±0.5kHz
Max. power 500W
Working amplitude 10μm±5%——60μm±5%,set as you like.
Generator type  Intelligent generator (display working frequency and amplitude)
Generator specification L560mm×W390mm×H160mm
Time control 0—99s (It can be set according to customer’s requirement)
Temperature Customer requirements





Testing liquid beaker main indicator



Beaker type: beaker with quartz and liquid-bath

Beaker concentricity: less than beaker diameter 5%

Beaker liquid depth: 100±10mm

Beaker diameter: 100±15mm

Cooling type: liquid-bath cooling

Cooling liquid: heat conducting oil

Liquid temperature: 25±2°C



Sound proof equipment main indicator



Sound proof material: sound proof cotton

Noise level after sound proof: ≤40dB

Test specimen main indicator

Test specimen immerse depth: 12±4mm

Test specimen diameter: 15.9±0.05mm.

Test specimen thickness:     4mm≤H≤10mm.

Surface runout:   ≤0.05mm (If there is scratch, may become the staring point of accelerated cavitation damage.)



Note: the above indicators are designed and tested according to ASTM G32-06.

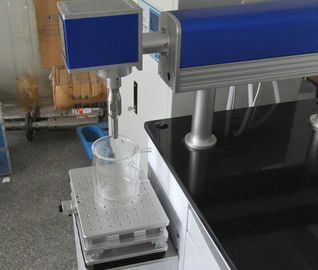

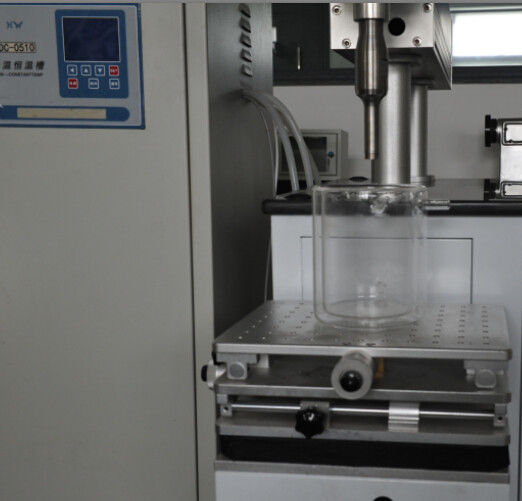

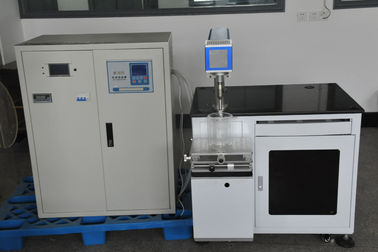

4. Ultrasonic Cavitation erosion system picture



20Khz High Power Vibration Ultrasonic Sonochemistry For Cavitation Erosion System / Batch 0





The above ultrasonic cavitaton erosion system is developed and designed by ourselves according to ASTM standard. If you have special technology requirement, we can design it specially for reaching your requirements.



Delivery time: one month



This product has been applied for the national utility model patent.
If you need to know more about the product, please contact us at any time. We will supply with you the best product and service continuously.
