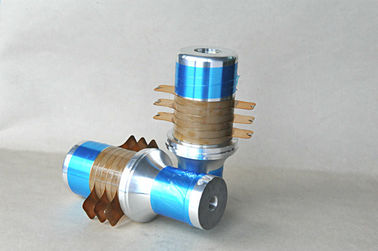

Portable Transducer 2600W For Ultrasonic Welder , High Power Ultrasonic Transducer

Portable Transducer 2600W For Ultrasonic Welder , High Power Ultrasonic Transducer
Portable Transducer 2600W For Ultrasonic Welder , High Power Ultrasonic Transducer Portable Transducer 2600W For Ultrasonic Welder , High Power Ultrasonic Transducer

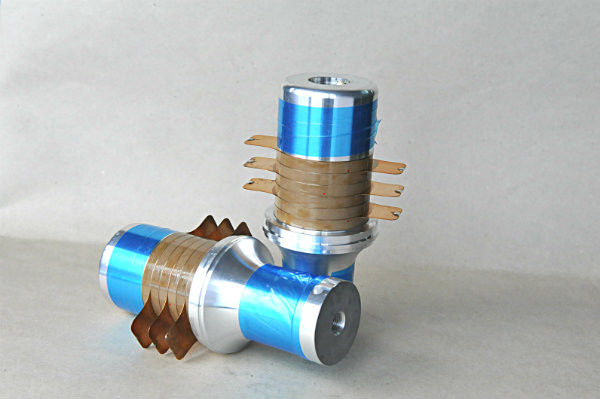

Large Image :  Portable Transducer 2600W For Ultrasonic Welder , High Power Ultrasonic Transducer

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-6015-6D
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000 units per month

Portable Transducer 2600W For Ultrasonic Welder , High Power Ultrasonic Transducer

Description
Product Name: Ultrasonic Welding Transducer Joint Bolt: 1/2-20UNF
Ceramic Diameter: 60mm Capacitance: 19~25 Nf
Type: Branson Type Application: Welding
High Light:

ultrasonic piezoelectric transducer

,

portable transducer

Portable Transducer 2600w For Ultrasonic Welder , High Power Ultrasonic Transducer

Specifications:



Model

HS-6015-6D

Frequency

15khz

Output power

2600watt

Joint bolt

1/2-20UNF

Ceramic disc Diameter

60mm

Quantity of Ceramic discs

6 pcs

Capacitance

19~25nf

Amplitude

18um

Application

Welding





Description:

Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.

We mainly supply two kinds of Ultrasonic transducers: NTK type and Branson type. Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:

Our transducer can applied in the following ultrasonic machines:

Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

 ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

 at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.





Competitive Advantage:



1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Portable Transducer 2600w For Ultrasonic Welder , High Power Ultrasonic Transducer

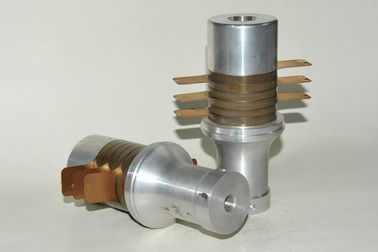

Portable Transducer 2600W For Ultrasonic Welder , High Power Ultrasonic Transducer 0

Portable Transducer 2600W For Ultrasonic Welder , High Power Ultrasonic Transducer 1
