Portable Miniature Ultrasonic Transducer , High Pressure Transducer 60 Khz

Portable Miniature Ultrasonic Transducer , High Pressure Transducer 60 Khz
Portable Miniature Ultrasonic Transducer , High Pressure Transducer 60 Khz Portable Miniature Ultrasonic Transducer , High Pressure Transducer 60 Khz Portable Miniature Ultrasonic Transducer , High Pressure Transducer 60 Khz

Large Image :  Portable Miniature Ultrasonic Transducer , High Pressure Transducer 60 Khz

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-1560-2Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 10,000 units per month

Portable Miniature Ultrasonic Transducer , High Pressure Transducer 60 Khz

Description
Product Name: Ultrasonic Welding Transducer Frequency: 60 Khz
Ceramic Diameter: 15 Mm Capacitance: 0.7 - 0.8 Nf
Power: 100 Watt Application: Smart Card Coil Wire Embedding
High Light:

high frequency ultrasonic transducer

,

portable transducer

Portable Miniature Ultrasonic Transducer , High Pressure Transducer 60 Khz



Specifications:



Model

HS-1560-2Z

Frequency

60 khz

Output power

100 watt

Joint bolt

M6 * 0.75

Ceramic disc Diameter

15 mm

Quantity of Ceramic discs

2 pcs

Capacitance

0.7 - 0.8 nf

Amplitude

4 um

Application

Smart card coil wire embedding





Description:



The 60 khz ultrasonic transducer is applied to embedding the coil wires to the smart card, or RFID card, and other small samples welding applications. Altrasonic R&D department design the small welding horn to weld, embed, or inlay, many kinds of small parts with different type shapes.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.





Competitive Advantage:



1. Titanium welding horn (To enlarge the service life )

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

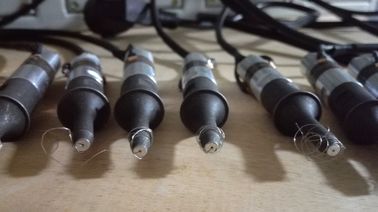

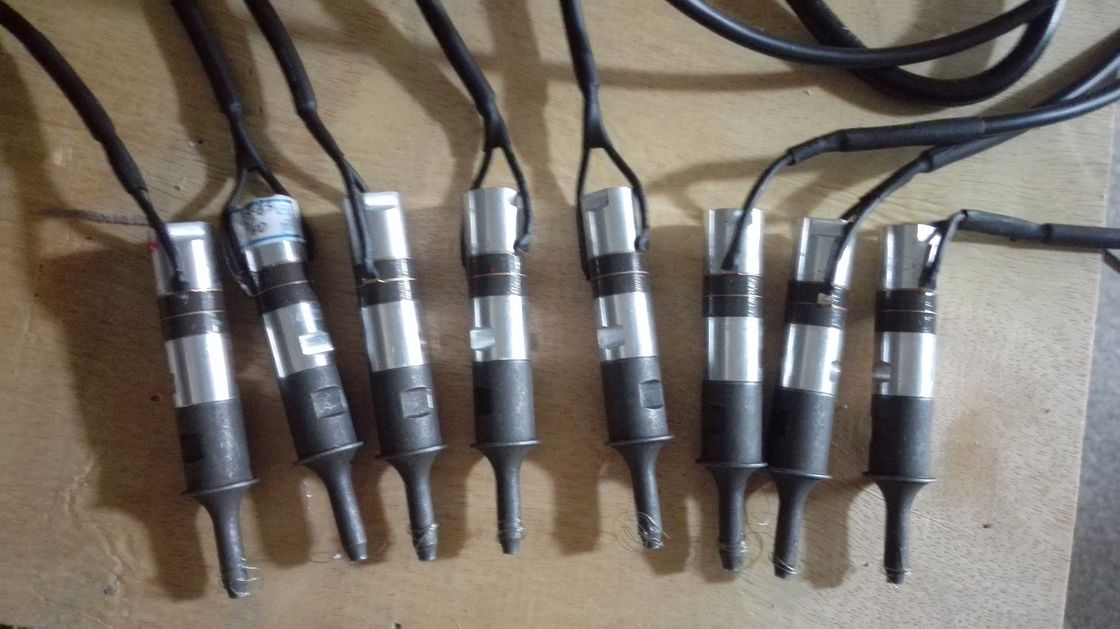

Application :



Portable Miniature Ultrasonic Transducer , High Pressure Transducer 60 Khz



Portable Miniature Ultrasonic Transducer , High Pressure Transducer 60 Khz 0

Portable Miniature Ultrasonic Transducer , High Pressure Transducer 60 Khz 1

Portable Miniature Ultrasonic Transducer , High Pressure Transducer 60 Khz 2
