Branson 803 Ultrasonic Transducer For Branson Titanium Aluminum 20kHz

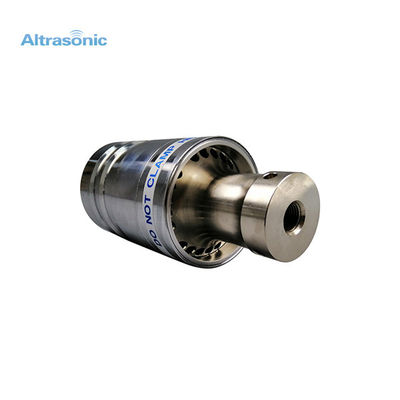

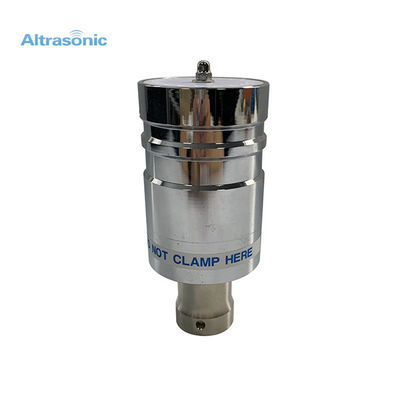

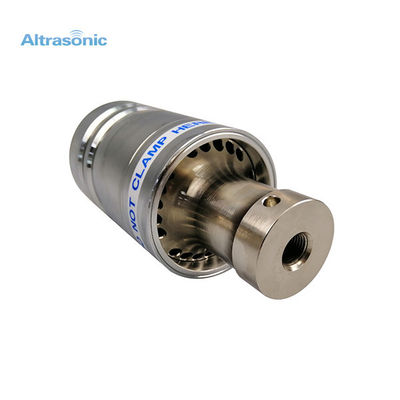

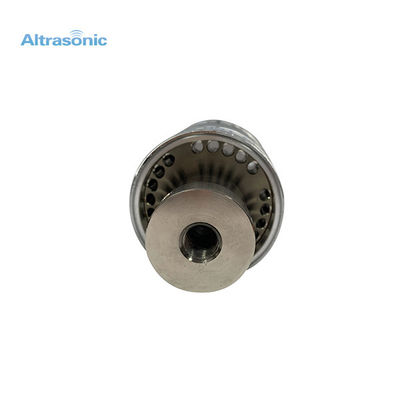

Large Image : Branson 803 Ultrasonic Transducer For Branson Titanium Aluminum 20kHz

Product Details:

Place of Origin:	CHINA
Brand Name:	Altrasonic
Certification:	CE
Model Number:	HS-B803

Payment & Shipping Terms:

Minimum Order Quantity:	2 units
Price:	negotiation
Packaging Details:	Packed in carton
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	1000 units per month

Contact Now

Branson 803 Ultrasonic Transducer For Branson Titanium Aluminum 20kHz

Description

Product Name:	Ultrasonic Converter	Frequency:	20Khz
Ceramic Diameter:	50 Mm	Capacitance:	11.5 - 12.5nf
Power:	1500W	Application:	Plastic Welding Machine
Ceramic Disc:	4pcs Or 6pcs	Material:	Titanium, Aluminum Materials Optional
Protective Outer Cover:	Aluminum And Stainless Steel Optional	Delivery Time:	7workdays
High Light:	Branson 803 20 khz transducer , 20khz Ultrasonic Transducer For Branson , 20khz Ultrasonic Transducer 1500 Watt

Branson 803 Ultrasonic Transducer For Branson Titanium Aluminum 20kHz

Specifications:

Model:HS-B803
Frequency:20 kHz
Output power:1500 watt
Joint bolt:1/2-20unf
Ceramic disc Diameter:50 mm
Quantity of Ceramic discs:4 pcs or 6pcs
Capacitance:11.5 - 12.5 nf
Amplitude:20 um
Application:welding machine

Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).

What we can do for you:

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
