Product Details:
|
| Product Name: | 40Khz High Frequency Ultrasonic Welding Transducer Without Housing | Frequency: | 30KHz |
|---|---|---|---|
| Power: | 100W | Connect Screw: | M10 |
| Ceramic Diameter: | 30mm | Qty Of Ceramic: | 4Pcs |
| Application: | Welding | Origin: | China |
| High Light: | 100 Watt Ultrasonic Welding Transducer,100 Watt 40kHz Ultrasonic Transducer,Ultrasonic Welding Transducer High Frequency |
||

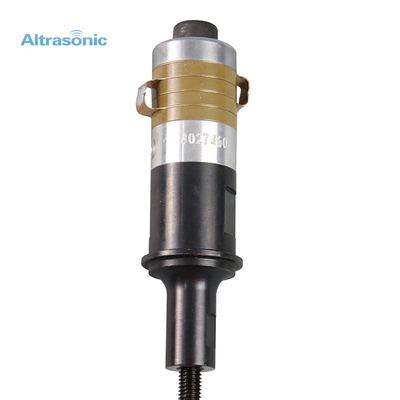

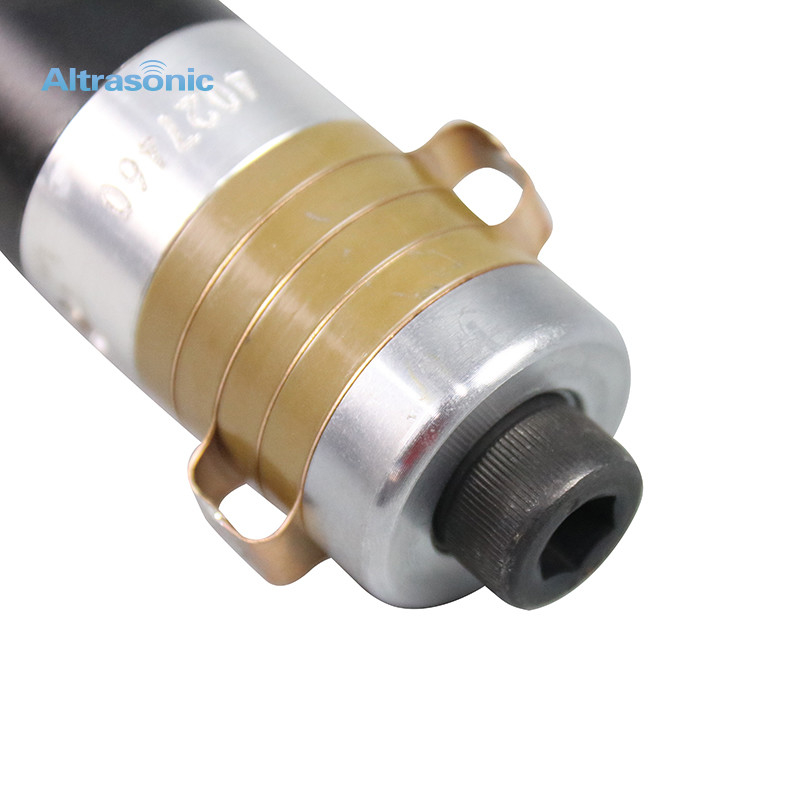

40kHz Ultrasonic Transducer Welding Without Housing High Frequency High Quality
Specification:
| Model | HS-3040-4Z |
| Frequency | 30khz |
| Output power | 1000watt |
| Joint bolt | M10 |
| Ceramic disc Diameter | 30 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 5.5-6.2nf |
| Amplitude | 4um |
| Application | Welding |
Description:
The function of the ultrasonic transducer is to convert the input electrical power into mechanical power (ie, ultrasonic waves) and then transmit it out, while consuming a small part of the power itself.
Ultrasonic transducer, the technical problem to be solved is to design an ultrasonic transducer with large action distance and wide frequency band.
The transducer consists of a shell, a matching layer, a piezoelectric ceramic disc transducer, a backing, a lead-out cable and a Cymbal array receiver. The piezoelectric ceramic disc transducer is made of PZT-5 piezoelectric material polarized in the thickness direction, and the Cymbal array receiver is composed of 8 to 16 Cymbal transducers, two metal rings and rubber gaskets. The working distance of the invention is greater than 35m, the frequency band width reaches 10kHz, and the long-distance target moving at high speed can be detected.
Applications:
| Ultrasonic welding machine |
All material with thermoplasticity can use Ultrasonic welding machine , it can welding the material more easy and stable.Such like plastic, fabric, ABS, nonwovens. |
| Ultrasonic cutting machine |
Ultrasonic food cutting is popular because the perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same. |
| Ultrasonic sewing machine |
Ultrasonic sewing can sewing the material without any cotton, and keep longer time. |
Competitive Advantage:
1. Excellent quality
2. Easy matching with ultrasonic power supply
3. Superior raw materials
4. OEM cooperation
