Product Details:
|
| Product Name: | 40Khz High Frequency Ultrasonic Welding Transducer Without Housing | Frequency: | 30KHz |
|---|---|---|---|
| Power: | 100W | Connect Screw: | M10 |
| Ceramic Diameter: | 30mm | Qty Of Ceramic: | 4Pcs |
| Application: | Welding | Origin: | China |
| High Light: | 40k Ultrasonic Welding Converter,Ultrasonic Welding Converter Without Housing,High Reliability Ultrasonic Welding Converter |
||

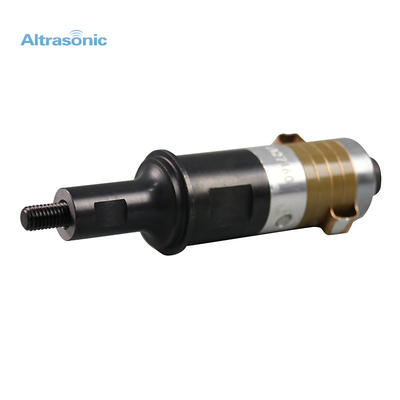

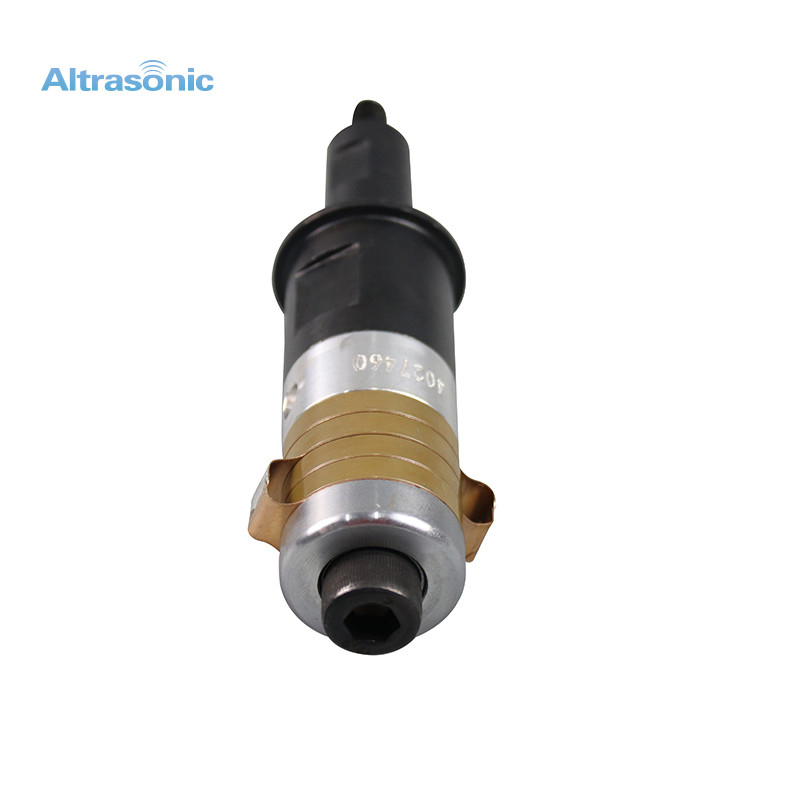

40kHz Ultrasonic Converter Welding Without Housing Transducer High Reliability
Specification:
| Model | HS-3040-4Z |
| Frequency | 30khz |
| Output power | 1000watt |
| Joint bolt | M10 |
| Ceramic disc Diameter | 30 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 5.5-6.2nf |
| Amplitude | 4um |
| Application | Welding |
Working Principle:
When the transducer is in the transmitting state, it converts electrical energy into mechanical energy and then into acoustic energy.
The electrical oscillation signal sent from the output stage of the excitation power supply will cause the change of the electric field or the magnetic field in the electric energy storage element in the transducer. The driving force makes it into a vibration state, thereby pushing the medium in contact with the mechanical vibration system of the transducer to vibrate, and radiating sound waves into the medium.
Applications:
| Ultrasonic welding machine |
All material with thermoplasticity can use Ultrasonic welding machine , it can welding the material more easy and stable.Such like plastic, fabric, ABS, nonwovens. |
| Ultrasonic cutting machine |
Ultrasonic food cutting is popular because the perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same. |
| Ultrasonic sewing machine |
Ultrasonic sewing can sewing the material without any cotton, and keep longer time. |
Competitive Advantage:
1. Reliable performance
2. Easy matching with ultrasonic power supply
3. Superior raw materials
4. OEM customization
