Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency

Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency
Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency
Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency

Large Image :  Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-WS35
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 5000 Set per month
Payment Terms: T/T, Western Union
Supply Ability: 500 pieces/month

Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency

Description
Frequency: 35khz Application: Sealing Or Welding
Components: Ultrasonic Transducer, Generator And Wheel Net Weight: 280kg
Frequency Tuning Method: Frequency Tuning Method Name: Ultrasonic Sealing Machine
Power: 800watt Certification: CE
Warranty: 1 Year Delivery Time: 15workdays
High Light:

Ultrasonic Sealing Machine 35kHz

,

Ultrasonic Sealing Machine High Efficiency

,

Rotary Horns Ultrasonic Sealing Machine

35kHz Ultrasonic Sewing Cutting Sealing Machine High Efficiency



Description:



Ultrasonic sewing machine uses ultrasonic vibration to generate energy, performs fabric folded edge trimming and automatically fuses the edge of the fabric, and completes the butterfly-shaped seamless joint with adhesive tape. The welding of curved surfaces, such as armholes, princess lines, crotch seams, etc., is an indispensable equipment for the production of seamless garments. The working principle of high-frequency sewing machines is the same as that of ultrasonic machines. The difference between them is that the frequency of the sound waves is different. It is ultrasonic, when the frequency of ultrasonic is greater than 100khz, we call it high frequency. In fact, high frequency is a kind of ultrasonic. The advantage of high frequency sewing machine is that it is free of tape, used for waterproof zippers, seamless pockets, trademarks and large The bonding of block fabrics, with cooling device, environmental protection, is the trend model of international high-end clothing and tent production.



                                       Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency 0



1. Air filter assembly



2. Main power switch



3. Main air leakage switch



4. Ultrasonic current



5. Ultrasonic running button



6. Ultrasonic power switch



7. Ultrasonic alarm



8. Power indicator



9. Pressure controller of press wheel

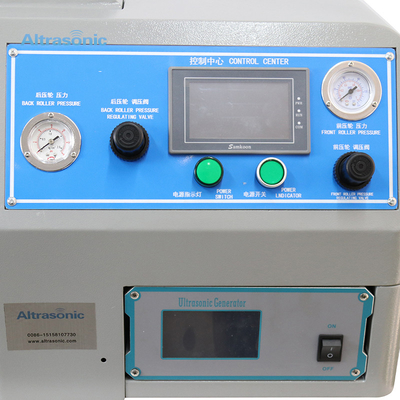

10. Control center



11. Pressure indicator of press wheel



12. Upper press wheel



13. Ultrasonic converter



14. Left and right pedals



15. Upper cylinder column



16 Working lamp



Specifications:



Model HS-WS35
Frequency 35 KHz
Power 800 W
Rotary Welding Horns Width 12 mm
Power Adjust Method File or Continuous
The Horns Surface Hardness More than HRC56
Real-time Display Working Frequency and Working Current
Synchronizing Wheel Specifications 46XL Trapezoidal Tooth,Width16mm
Synchronizing Belt Matched The Length is not more than730mm,the Width 12mm
Allowable Rotation Speed 100 r/min.
Install Bolt M8, 4 pcs




Applicable materials:



Chemical synthetic fiber cloth, or containing chemical fiber blended patch, chemical film (containing more than 30% chemical fiber), can be processed into the required products, such as Nylon cloth, needle and thread patch, non-woven fabric, T/R cloth, Tedlon patch (Polyester cloth), multi-layer cloth, and all kinds of laminated film paper can be applied.



Detailed image:

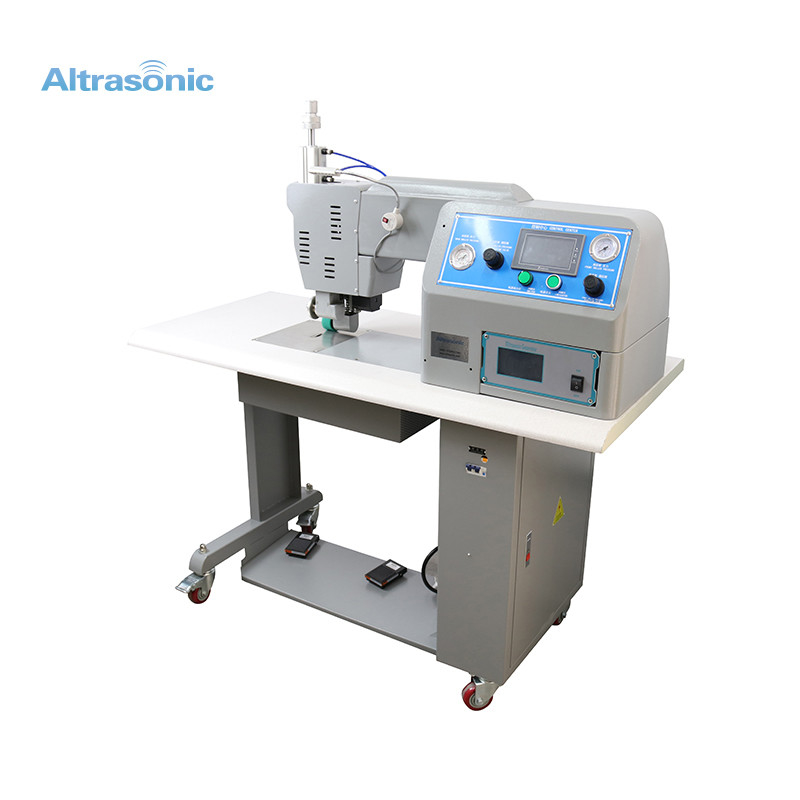

Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency 1



Main advantages:



· More stability.

· Easy operation.

· The wheels and most of parts are made from titanium materials, long service life.

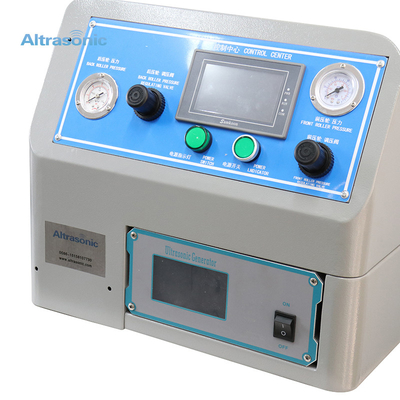

· Digital ultrasonic power supply, automatic tracking frequency, with real-time monitoring LCD screen.

· Easily integrated on customers' current processing line.



Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency 2

Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency 3

Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency 4

Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency 5Rotary Horns Ultrasonic Sealing Machine 35kHz High Efficiency 6
