Product Details:
|
| Frequency: | 35khz | Application: | Sealing Or Welding |
|---|---|---|---|
| Components: | Ultrasonic Transducer, Generator And Wheel | Net Weight: | 280kg |
| Frequency Tuning Method: | Frequency Tuning Method | Name: | Ultrasonic Sealing Machine |
| Power: | 800watt | Certification: | CE |
| Warranty: | 1 Year | Delivery Time: | 15workdays |
| High Light: | 35kHz Ultrasonic Sealing Equipment,800 Watt Ultrasonic Sealing Equipment,High Efficiency Ultrasonic Sealing Machine |
||
35kHz Ultrasonic Sewing Cutting Sealing Equipment High Efficiency High Quality
Description:
Ultrasonic sewing machine and ultrasonic lace sewing machines are widely used in the seamless garment industry. The ultrasonic sewing machine is used for welding between two fabrics. The ultrasonic sewing machine has a popular sewing machine platform and can be operated skillfully without special training. It is only Run like an existing sewing machine. The ultrasonic sewing machine will cut the fabric with the sealing fabric. When reopened after the cut and seal operation the fabric panel connection lines will be barely visible, and the seam will not be thicker than the fabric itself.
|

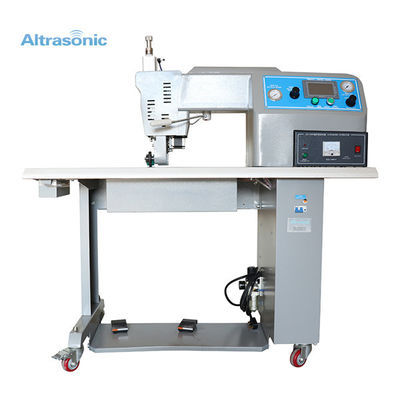

1. Air filter assembly
|
2. Main power switch
|
|
3. Main air leakage switch
|
4. Ultrasonic current
|
|
5. Ultrasonic running button
|
6. Ultrasonic power switch
|
|
7. Ultrasonic alarm
|
8. Power indicator
|
|
9. Pressure controller of press wheel
|
10. Control center
|
|
11. Pressure indicator of press wheel
|
12. Upper press wheel
|
|
13. Ultrasonic converter
|
14. Left and right pedals
|
|
15. Upper cylinder column
|
16 Working lamp |
Specifications:
| Model | HS-WS35 |
| Frequency | 35 KHz |
| Power | 800 W |
| Rotary Welding Horns Width | 12 mm |
| Power Adjust Method | File or Continuous |
| The Horns Surface Hardness | More than HRC56 |
| Real-time Display | Working Frequency and Working Current |
| Synchronizing Wheel Specifications | 46XL Trapezoidal Tooth,Width16mm |
| Synchronizing Belt Matched | The Length is not more than730mm,the Width 12mm |
| Allowable Rotation Speed | 100 r/min. |
| Install Bolt | M8, 4 pcs |
Basic configuration:
1. New intelligent ultrasonic generator
2. Top-mounted ultrasonic transducer
3. Pneumatic welding head lifting system
4. Rolling die adjustment mechanism and monolithic system
5. Special rack design, with a variety of practical functions
6. Single-channel motor speed control system

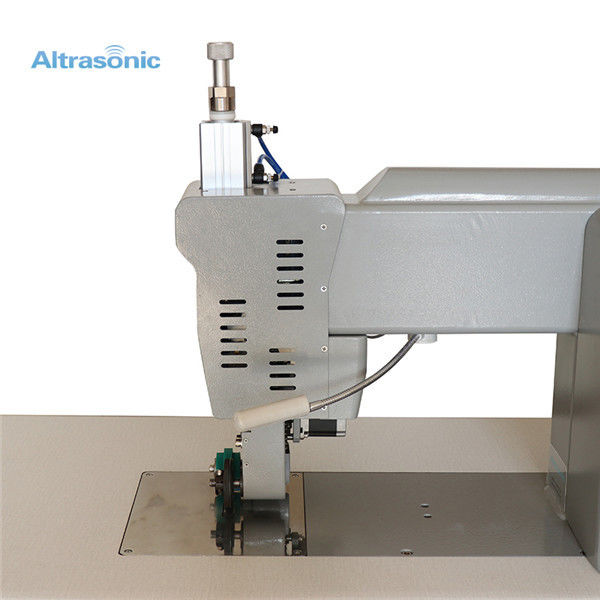

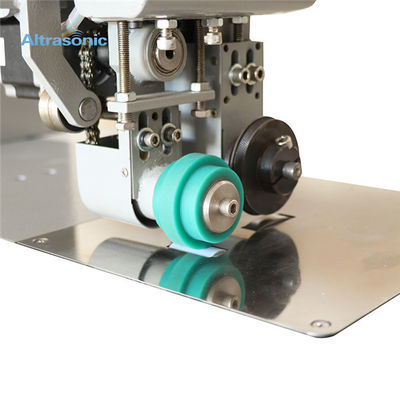

Detailed image:
Main advantages:
· More stability.
· Easy operation.
· The wheels and most of parts are made from titanium materials, long service life.
· Digital ultrasonic power supply, automatic tracking frequency, with real-time monitoring LCD screen.
· Easily integrated on customers' current processing line.
