Product Details:
|
| Product Name: | Ultrasonic Transducer | Fs: | 20KHz |
|---|---|---|---|
| Color: | Silver | Application: | Welding |
| Voltage: | 220V | Weight: | 2.5kg |
| Brand Name: | Altrasonic | Certificate: | CE |
| Highlight: | High Performance 20khz Ultrasonic Transducer,Silver 20khz Ultrasonic Transducer,Non Woven Fabrics 20khz Ultrasonic Transducer |
||
High Performance 20KHz ultrasonic welding transducer for non-woven fabrics
Specification:
| Model | HS-5020-4Z |
| Frequency | 20khz |
| Output Power | 1500watt |
| Joint Bolt | M18*1.5 |
| Ceramic Disc Diameter | 50mm |
| Quantity of Ceramic Discs | 4pcs |
| Capacitance | 11-17nf |
| Amplitude | 8um |
| Application | Welding |
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Advantages:
1. We have CE certificates.
2. Various production line, covering more than 50 different kinds of professional machinery to produce ultrasonic related machine.
3. Advanced technical support and strict quality management system..High-efficiency and timely service by E-mail,Skype,Whatsapp,etc. and 24-hours telephone service.
4. Having 20 years experience in this field, our machine are in great demand at home and abroad.We have exported the machine more than 50 countries.

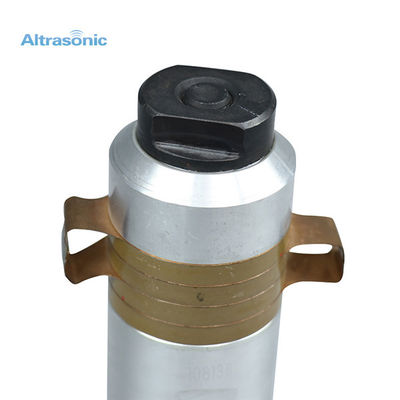

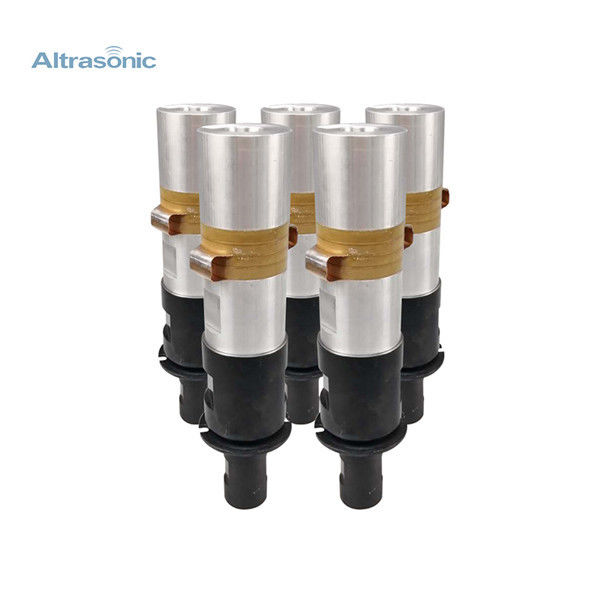

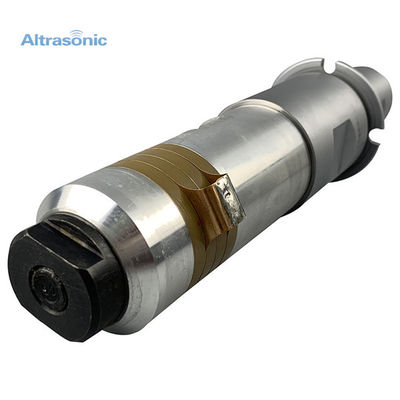

Product Display:
