Product Details:
|
| Product Name: | Replacement Transducer For Dukane 110-3122 | Frequency: | 20 Khz |
|---|---|---|---|
| Ceramic Diameter: | 50 Mm | Capacitance: | 11 NF |
| Power: | 2000W | Application: | Welding Machine |
| Amplitude: | 20 Um | Ceramic Disc: | 4 Pcs |
| Material Of Booster: | Titanium, Aluminum, Steel Materials Optional | Protective Housing: | Aluminum And Stainless Steel Optional |
| Highlight: | ultrasonic transducer for welding,transducer ultrasonic welding |
||

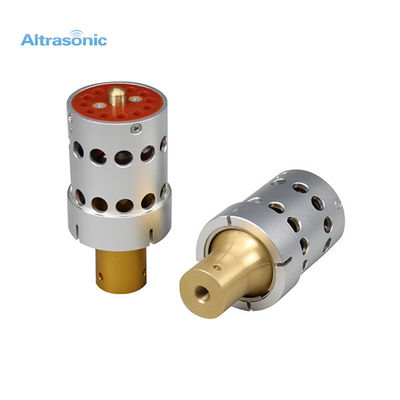

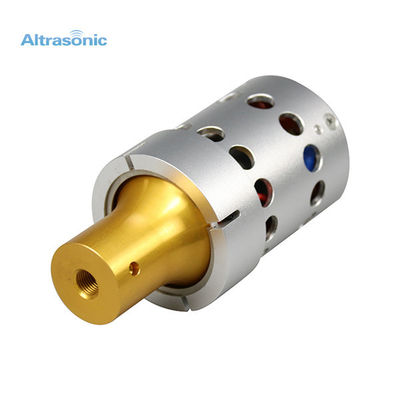

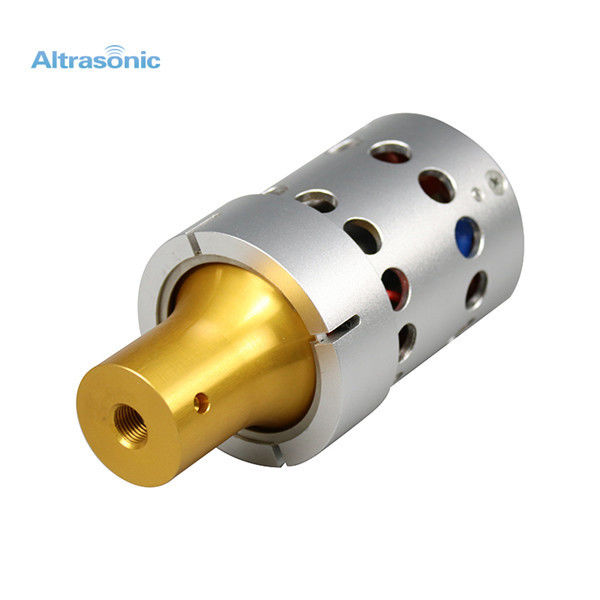

Dukane 110-3122 CE Ultrasonic Welding Transducer Sound Converter Replacement
Specifications:
|
Model |
HS-D110-3122 |
|
Frequency |
20 khz |
|
Output power |
2000 watt |
|
Joint bolt |
1/2-20UNF |
|
Ceramic disc Diameter |
50 mm |
|
Quantity of Ceramic discs |
4 pcs |
|
Capacitance |
11nF |
|
Amplitude |
20 um |
|
Application |
welding machine |
Description:
The 20Khz high power Ultrasonic Welding Transducer , replacement converter for Dukane is applied to Dukane type 110-3122 ultrasonic welding machine.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode.
Warranty:
We offer the same warranty as the OEM, namely, one years one-time replacement.
Simply ship the broken unit back to arrive within one years of original shipment, and it will be replaced (one time).
