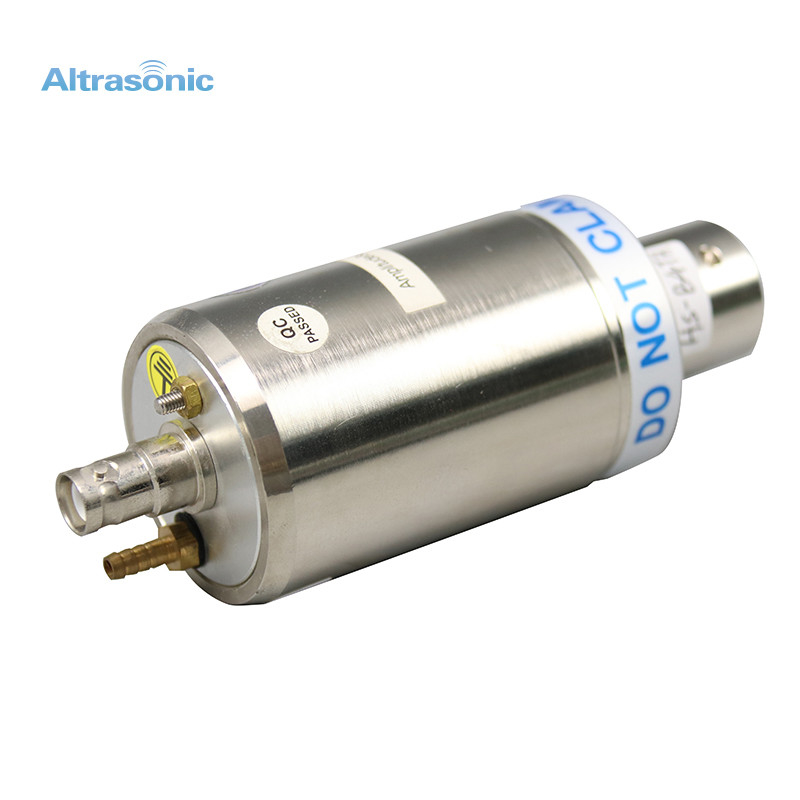

Titanium 4TH 40kHz Ultrasonic Transducer Replacement Branson

Large Image : Titanium 4TH 40kHz Ultrasonic Transducer Replacement Branson

Product Details:

Place of Origin:	China
Brand Name:	Altrasonic
Certification:	CE
Model Number:	HS-B4TH

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	Packed in carton
Delivery Time:	3 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	10,000 units per month

Contact Now

Titanium 4TH 40kHz Ultrasonic Transducer Replacement Branson

Description

Product Name:	Ultrasonic Converter	Frequency:	40 Khz
Ceramic Diameter:	25 Mm	Capacitance:	4.5 -5.3 Nf
Power:	500 Watt	Application:	Welding Machine
Amplitude:	6 Um	Ceramic Disc:	4 Pcs
Material:	Titanium, Aluminum Materials Optional	Protective Housing:	Aluminum And Stainless Steel Optional
Highlight:	Titanium 40kHz Ultrasonic Transducer , Replacement Branson 40kHz Ultrasonic Transducer , Replacement Branson Ultrasonic Welding Transducer

High Quality Replacement Branson 4TH Ultrasonic Converter 40kHz ultrasonic transducer

Specifications:

Model	HS-B4TH
Frequency	40 khz
Intput power	800 watt
Joint bolt	M8
Ceramic disc Diameter	25 mm
Quantity of Ceramic discs	4 pcs
Capacitance	4.5 -5.3 nf
Amplitude	6 um
Application	welding machine

Description:

The Replacement transducer for Branson 4TH Direct replacement for the Branson 4TH that delivers lower cost, rugged quality and superior value.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.

Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).

Product display

Titanium 4TH 40kHz Ultrasonic Transducer Replacement Branson 0
