Ultrasonic Small Thread Cnc Drilling Milling Machine 20Khz

Ultrasonic Small Thread Cnc Drilling Milling Machine 20Khz
Ultrasonic Small Thread Cnc Drilling Milling Machine 20Khz

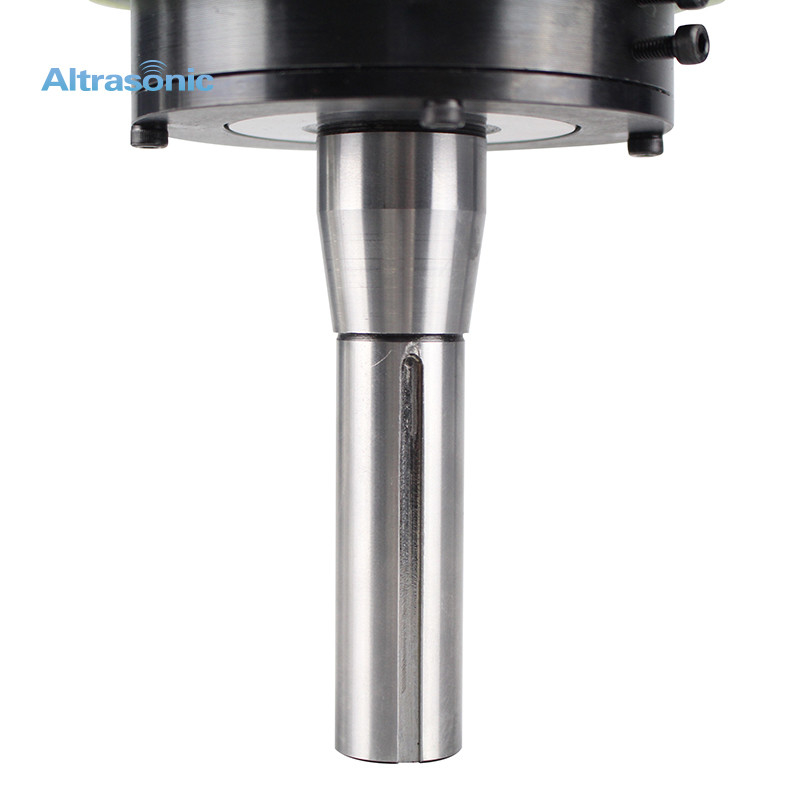

Large Image :  Ultrasonic Small Thread Cnc Drilling Milling Machine 20Khz

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 15-30 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 200 Set per month

Ultrasonic Small Thread Cnc Drilling Milling Machine 20Khz

Description
Frequency: 20Khz Output Power: 1000w
Voltage: 220v Switch: Handle Or Foot Switch
Power Adjusting: Step Or Continuous Working Time Control: 24 Hours
Weight: 30KG ( Determined By The Size Of The Horn ) Generator: Digital Generator
High Light:

Ultrasonic Cnc Drilling Milling Machine

,

Assisted Machining Cnc Drilling Milling Machine

,

20Khz Cnc Mill Drill Machine

Multifunction ultrasonic small thread cnc drilling milling machine price



Description:



The principle of the ultrasonic vibration system of ultrasonic milling machine rotation processing is: the ultrasonic generator converts alternating current into ultrasonic frequency sinusoidal electrical oscillation signal, the transducer converts the electrical oscillation signal into ultrasonic frequency mechanical vibration, and the horn changes the longitudinal direction of the transducer After the vibration is amplified, it is transmitted to the tool head, and the tool head adds rotational motion while making ultrasonic vibration.




Specification:



Frequency 20 Khz
Output Power 1000 W
Voltage 220 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weignt 30 KG ( Determined by the size of the horn )
Generator Digital Generator





Applications:


Milling of difficult-to-machine materials: such as heat-resistant steel, titanium alloy, constant elastic alloy, high-temperature alloy, stainless steel, chilled cast iron, engineering ceramics, composite materials and granite, etc.
