Product Details:
|
| Product Name: | Ultrasonic Plastic Welding Machine | Frequency: | 15k |
|---|---|---|---|
| Power: | 2600w | Max Current:: | 10A |
| Origin: | CHINA | Model: | HS-W15B |
| Warranty: | 1 Year | Certification: | CE |
| High Light: | Ultrasonic Plastic Welding Machine 240V,20k Ultrasonic Plastic Welding Machine,15kHz Plastic Welding Equipment |
||
15kHz 20kHz pvc ultrasonic plastic welding machine multifunctional
Description:
The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic welding with the proper time setting and pressure is the fastest most reliable method for thermoplastic parts welding.
* Eliminate use of consumable material
* Produce airtight and watertight seams
* Increase production time
Specifications:
| Item No | HS-W15B |
| Frequency | 15Khz |
| Power | 2600W |
| Voltage | 200-240V,Alternating current |
| 50-60hz, Single phase | |
| Electric current | 20A |
| Range of welding time | 0.05-10/sec |
| Environment Temperature | 5-50℃ |
| Air supply requirements | Clean dry compressed air, maximum pressure 7kg |
| Maximum pressure | 2.89KN |
| Maximum stroke | 100MM |
| Beats | 50/Min |
| Triggered Dynamic range | 135-990N |
| Weight | 68Kgs |
| Dimension |
476mm(L)*736mm(W)*1524mm(H)
|
Application of plastic welding equipment:
Ultrasonic plastic welding machine is used in automobile industry, electronic industry, medical industry, home appliance industry, non-woven clothing, office supplies, packaging industry, toy industry, etc. For example, body plastic parts, car doors, car instruments, lights, mirrors, sun visors, interior trim, filters, reflective materials, reflective spikes, bumpers, cables, plastic filters for motorcycles, radiators, brake fluid tanks, oil cups, water tanks, oil tanks, air ducts, exhaust purifiers, tray filters; Plastic electronics: prepaid water meter, electricity meter, communication equipment, cordless telephone, mobile phone accessories, mobile phone case, battery case, charger, valve regulated sealed maintenance lead-acid battery, 3-inch floppy disk, U disk, SD card, CF card, USB connector; Toy stationery: folder, photo album, folding box, PP hollow board, pencil case, ink cartridge and toner drum; Medical daily use: watch, kitchenware, oral liquid bottle cap, drip bottle cap, mobile phone accessories, golden soft brush, daily necessities, sanitary products, children's products, air mattress, clothes hanger, gardening products, kitchen ware, sanitary ware, golden soft brush, shower head, anti-counterfeiting bottle cap, cosmetic bottle cap, coffee pot, washing machine, air dehumidifier, electric iron, electric kettle, vacuum cleaner Welding of speaker metal cover, etc.

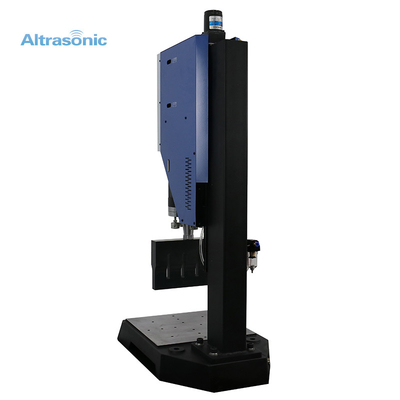

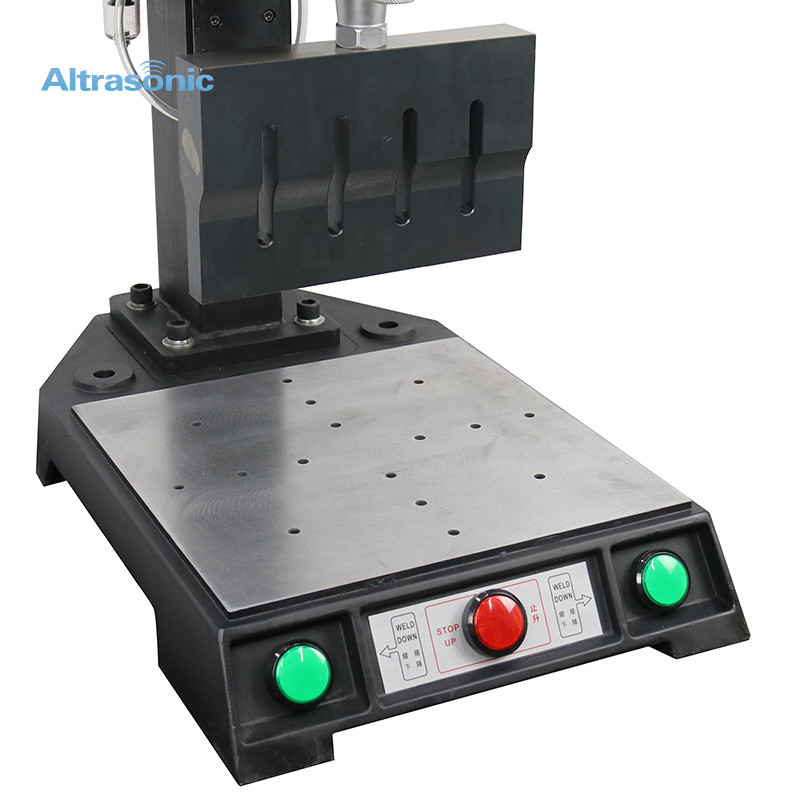

Detailed Images:
