Product Details:
|
| Product Name: | Ultrasonic Plastic Welding Machine | Frequency: | 15k |
|---|---|---|---|
| Power: | 2600w | Max Current:: | 10A |
| Origin: | CHINA | Model: | HS-W15B |
| Warranty: | 1 Year | Certification: | CE |
| Highlight: | 2600w Ultrasonic Plastic Welding Machine,Ultrasonic Plastic Welding Machine Customizable,20A Ultrasonic Plastic Welding Machine |
||
Customizable Ultrasonic Plastic Welding Machine For ABS PP PE With Generator Horn
Description:
The ultrasonic energy is transmitted to the welding area through the upper weldment. Due to the large acoustic resistance at the interface between the two welding areas, local high temperature will be generated. Due to the poor thermal conductivity of the plastic, it can not be distributed in time and gathered in the welding area, resulting in the rapid melting of the contact surface of the two plastics. After adding a certain pressure, it will be integrated into one. When the ultrasonic stops, let the pressure last for a few seconds to solidify and form, so as to form a solid molecular chain to achieve the purpose of welding, and the welding strength can be close to the strength of raw materials.
Specifications:
| Item No | HS-W15B |
| Frequency | 15Khz |
| Power | 2600W |
| Voltage | 200-240V,Alternating current |
| 50-60hz, Single phase | |
| Electric current | 20A |
| Range of welding time | 0.05-10/sec |
| Environment Temperature | 5-50℃ |
| Air supply requirements | Clean dry compressed air, maximum pressure 7kg |
| Maximum pressure | 2.89KN |
| Maximum stroke | 100MM |
| Beats | 50/Min |
| Triggered Dynamic range | 135-990N |
| Weight | 68Kgs |
| Dimension |
476mm(L)*736mm(W)*1524mm(H)
|

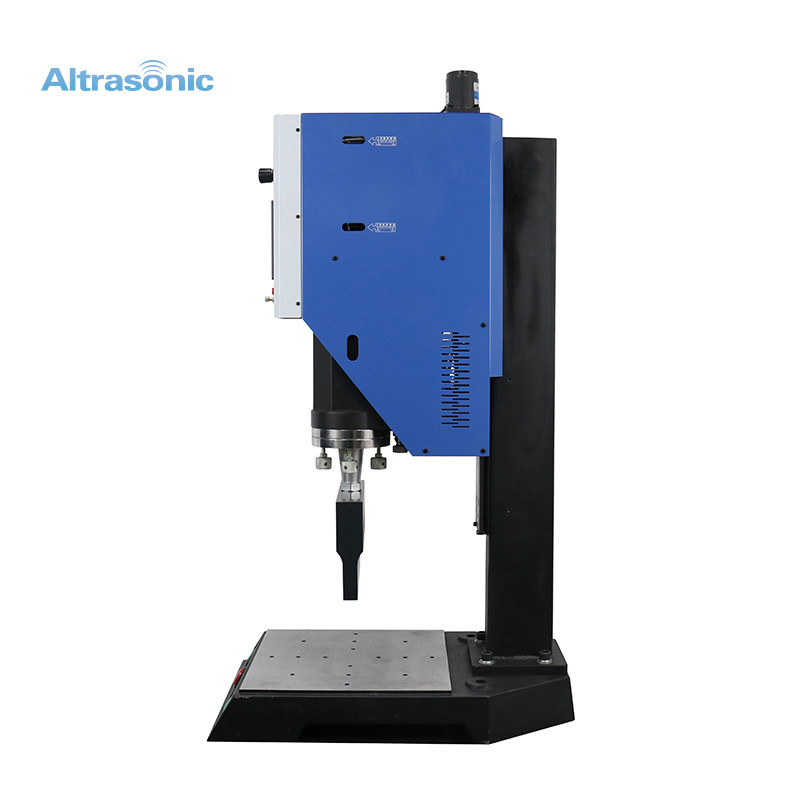

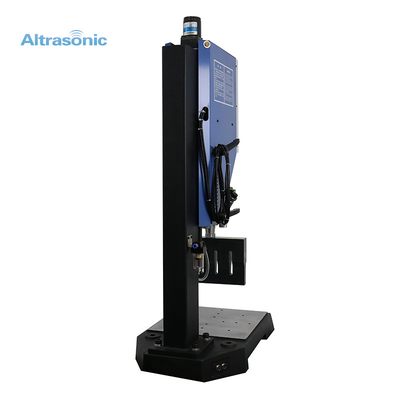

Detailed Images:
