Manual 35kHz Ultrasonic Spot Welding Machine For Plastic

Manual 35kHz Ultrasonic Spot Welding Machine For Plastic
Manual 35kHz Ultrasonic Spot Welding Machine For Plastic Manual 35kHz Ultrasonic Spot Welding Machine For Plastic Manual 35kHz Ultrasonic Spot Welding Machine For Plastic

Large Image :  Manual 35kHz Ultrasonic Spot Welding Machine For Plastic

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GW35
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month

Manual 35kHz Ultrasonic Spot Welding Machine For Plastic

Description
Product Name: Ultrasonic Spot Welding Machine Frequency: 35khz
Model Number: HS-GW35 Power: 800W
Horn: ≤10mm Housing Diameter: 51mm
Handle Size: 100mm×45mm×32mm Weight Without Wire And Horn: 20kg
Type: Gun Type Application: Automotive Parts
High Light:

Ultrasonic Plastic Spot Welder 35kHz

,

Manual Ultrasonic Spot Welding Machine

,

Auto Parts Ultrasonic Plastic Spot Welder

High Quality 35kHz Ultrasonic Manual Spot Welding Machine For Plastic

Description:



Ultrasonic spot welding equipment uses a vibrator to convert it into mechanical energy. Such mechanical vibration is transmitted to the workpiece through the transmission element and the welding head, and the generated heat energy is used to break the molecular structure and melt the surface of the workpiece. Its firm strength is comparable to that of the main body plastic.



Specifications:



Model

HS-GW35

Frequency

35kHz

Power

800W

Generator

Digital

Horn Size

Customizable

Horn Material

Titanium alloy



Advantages:



1. Strength: The tensile force is comparable to that of the product itself.
2. Fast: welding time is short, 0.01-9.99 seconds can be set, improve work efficiency.
3. Quality: The welding part has a beautiful appearance, does not change color, and does not yellow.
4. Economy: No glue needed, material saving, environmental protection, and cost reduction.



Application:

  • Shoemaking industry: spot welding positioning of two pieces of leather.
  • Trademark industry: woven labels, printed labels, spot welding positioning, etc.
  • Plastic electronics: spot welding and riveting of small plastic parts, etc.
  • Houseware industry: fiber cotton spot welding, etc.
  • Automobile industry: spot welding of car door soundproof cotton, wiper seat, car engine cover, car water tank cover, etc.
  • Apparel industry: front positioning of underwear and underwear stitches, welding of webbing and elastic bands, etc. You can also use rhinestones to replace the gun head.

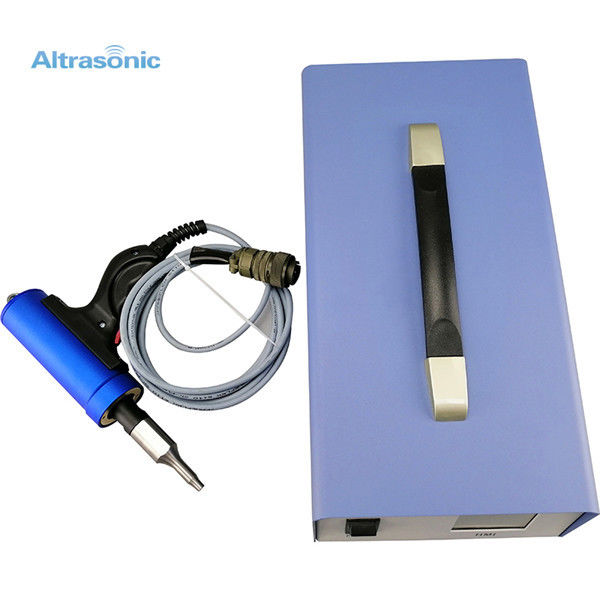

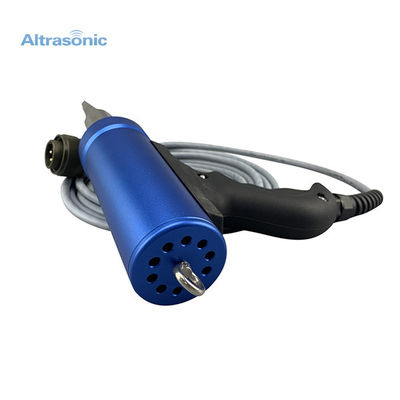

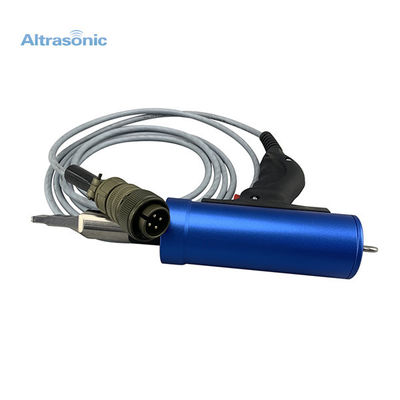

Product display:



Manual 35kHz Ultrasonic Spot Welding Machine For Plastic 0
