Product Details:
|
| Product Name: | Ultrasonic Spot Welding Machine | Frequency: | 35khz |
|---|---|---|---|
| Model Number: | HS-GW35 | Power: | 800W |
| Horn: | ≤10mm | Housing Diameter: | 51mm |
| Handle Size: | 100mm×45mm×32mm | Weight Without Wire And Horn: | 20kg |
| Type: | Gun Type | Application: | Automotive Parts |
| Highlight: | Gun Type Ultrasonic Spot Welder,Ultrasonic Plastic Spot Welder 800W,Tooth Shaped Ultrasonic Plastic Spot Welder |
||
Ultrasonic Spot Welder Machine For Welding Fabric And Plastic
Description:
Use the small welding head of the ultrasonic machine to divide the two plastic products into multi-point welding, or directly press the entire row of tooth-shaped welding heads on the two plastic workpieces to achieve the effect of ultrasonic spot welding.
Specifications:
|
Model |
HS-GW35 |
|
Frequency |
35kHz |
|
Power |
800W |
|
Generator |
Digital |
|
Horn Size |
Customizable |
|
Horn Material |
Titanium alloy |
Advantages:
1. Using piezoelectric ceramic transducer, the output is stable and strong.
2. It adopts straight-handle or pistol-style design, which is more convenient to operate.
3. The welding effect is controlled manually, which is easy to operate and does not require the use of cylinder pressure.
4. With automatic compensation circuit, the power can be adjusted freely to achieve uniform spot welding effect.
Application:
The handheld ultrasonic spot welding machine can be used for the welding, riveting, spot welding of films, fabrics, and thermoplastic products, as well as the inlay and edge pressing process between metal parts and plastic parts.

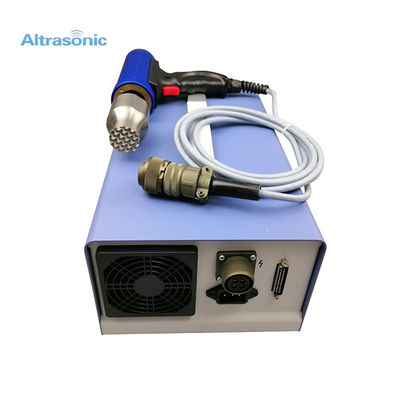

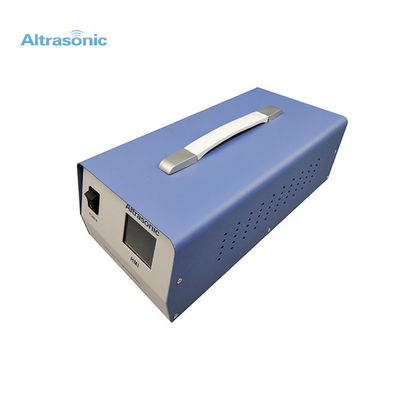

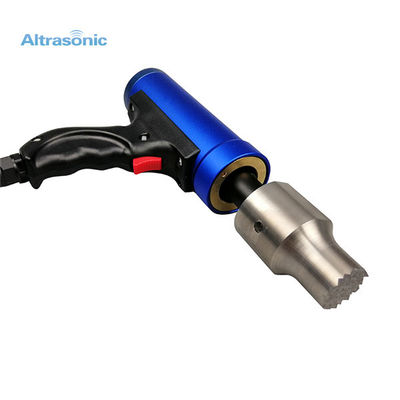

Product display:
