Product Details:
|
| Product Name: | Ultrasonic Transducer | Frequency: | 40Khz |
|---|---|---|---|
| Power: | 500W | Connect Screw: | M8 |
| Ceramic Diameter: | 25 Mm | Qty Of Ceramic: | 4pcs |
| Capacitance: | 4.5 -5.3 Nf | Application: | Welding |
| Finish: | Depending On Customer's Requirements | Warranty: | 1 Year |
| High Light: | Branson 4TH 40kHz Ultrasonic Transducer,500W Ultrasonic Welding Transducer,Welding Ultrasonic Transducer 40kHz |
||
40kHz 500W Ultrasonic Welding Transducer Replacement Branson 4TH
Specification:
| Model | HS-B4TH |
| Frequency | 40 khz |
| Output power | 500 watt |
| Joint bolt | M8 |
| Ceramic disc Diameter | 25 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 4.5 -5.3 nf |
| Amplitude | 6 um |
| Application | welding machine |
Description:
The transducer is the core component of the entire ultrasonic system, responsible for converting high frequency and high voltage into mechanical vibration energy.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

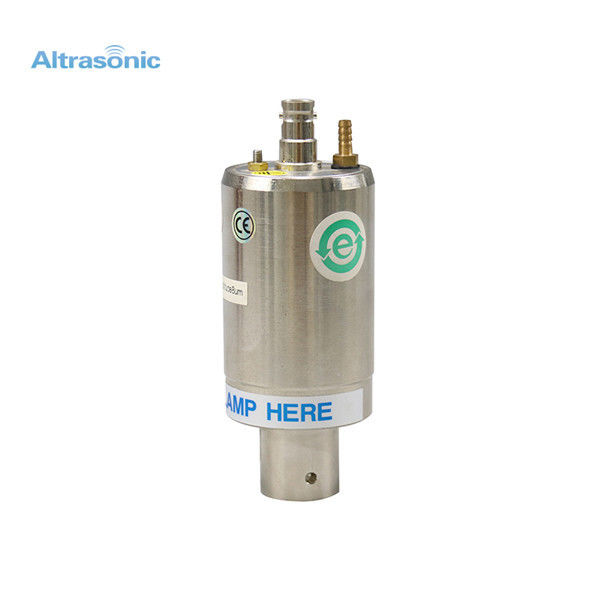

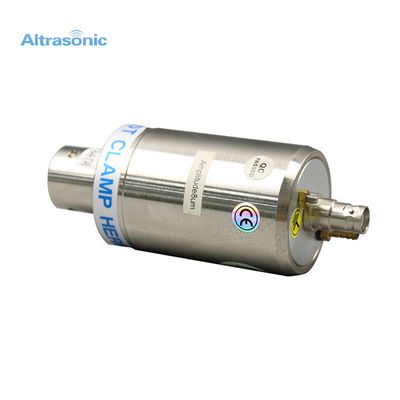

Detailed Images:
