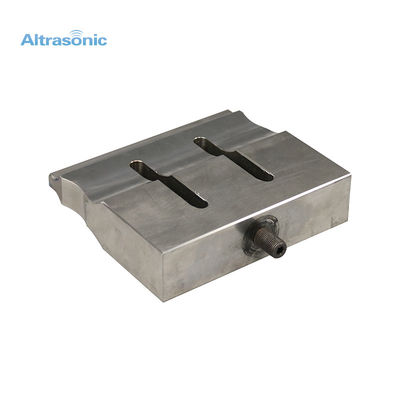

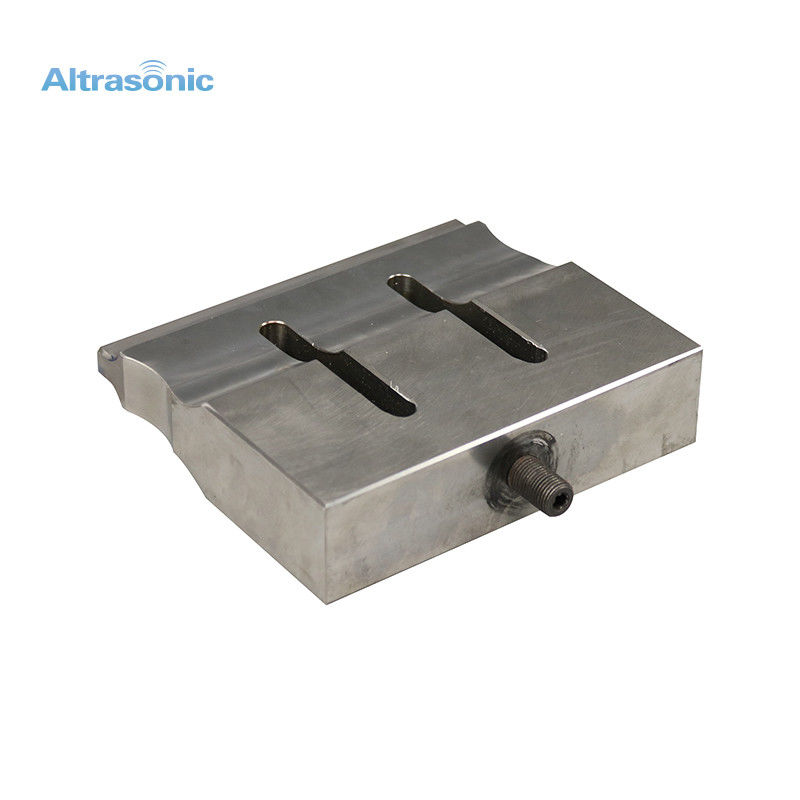

High Hardness Steel Horn 110x20mm Ultrasonic Welding System 20kHz

High Hardness Steel Horn 110x20mm Ultrasonic Welding System 20kHz
High Hardness Steel Horn 110x20mm Ultrasonic Welding System 20kHz High Hardness Steel Horn 110x20mm Ultrasonic Welding System 20kHz

Large Image :  High Hardness Steel Horn 110x20mm Ultrasonic Welding System 20kHz

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 2 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 pieces/month

High Hardness Steel Horn 110x20mm Ultrasonic Welding System 20kHz

Description
Horn Size: 110*20mm Or Customized Horn Material: Steel
Weight: 5kg Delivery Time: 5-7 Wokrdays
High Light:

110x20mm Horn Ultrasonic Welding System

,

Steel Horn Ultrasonic Welding System

,

20kHz Ultrasonic Welding System

20kHz ultrasonic welding system use ultrasonic horn 110*20mm



Specification:



Horn material
Steel
Horn Size
110*20mm/ 160*20mm/ 200*20mm
Weight
5kg
Packing
Bubble film + Carton
Delivery time
7 Workdays





Description:

Commonly used ultrasonic mold materials include aluminum alloy, mold steel, and titanium alloy. Ultrasonic molds made of different materials are suitable for different occasions and have different advantages.



Advantages of steel horn:

High hardness, high wear resistance, the strongest mold use time, and high stability. The disadvantage is that the ultrasonic transmission rate is relatively low, and the acoustic impedance is relatively large. In order to ensure the ultrasonic transmission effect, it is not suitable for the large-scale mold. In the case of a round mold, the unit diameter generally cannot exceed 11.5cm.



Application:
Steel molds are more suitable for various rolling cutting, punching, slitting, shearing and other application equipment, such as mask body machine, ultrasonic cloth slitting machine, ultrasonic punching machine and many other equipment use steel molds.



Detailed Images:

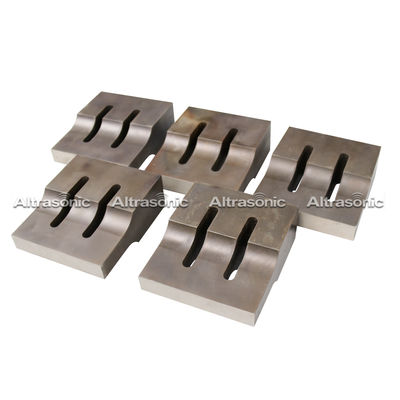

High Hardness Steel Horn 110x20mm Ultrasonic Welding System 20kHz 0High Hardness Steel Horn 110x20mm Ultrasonic Welding System 20kHz 1
