Dukane 41S30 Replacement 20Khz Ultrasonic Transducer For Cutting Welding

Dukane 41S30 Replacement 20Khz Ultrasonic Transducer For Cutting Welding
Dukane 41S30 Replacement 20Khz Ultrasonic Transducer For Cutting Welding Dukane 41S30 Replacement 20Khz Ultrasonic Transducer For Cutting Welding Dukane 41S30 Replacement 20Khz Ultrasonic Transducer For Cutting Welding

Large Image :  Dukane 41S30 Replacement 20Khz Ultrasonic Transducer For Cutting Welding

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-D41S30
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month

Dukane 41S30 Replacement 20Khz Ultrasonic Transducer For Cutting Welding

Description
Frequency: 20K Output Power: 1000 Watt - 3000 Watt
Joint Bolt: 1/2-20UNF Ceramic Disc Diameter: 50 Mm
Capacitance: 11000 Pf Amplitude: 20 Um
High Light:

Cutting 20Khz Ultrasonic Transducer

,

Welding 20Khz Ultrasonic Transducer

,

Dukane 41S30 Replacement Ultrasonic Transducer

20Khz Ultrasonic Transducer Dukane 41S30 Replacement For Cutting And Welding



20Khz Ultrasonic Transducer Dukane 41S30 Replacement For Cutting and Welding



Description:

The Replacement Converter for Dukane 20khz 41S30 machine Direct replacement for the Dukane 20khz machine that delivers lower cost, rugged quality and superior value.



Specifications:



Model HS-D-41S30
Frequency 20 khz
Output power 1000 watt - 3000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs
Capacitance 11000 pf
Amplitude 20 um
Application welding machine





Applied Range:
Ultrasonic transducers are widely used. They are divided into industry, agriculture, transportation, life, medical and military according to the applied industry. According to the functions realized, it is divided into ultrasonic processing, ultrasonic cleaning, ultrasonic detection, detection, monitoring, telemetry, remote control, etc.; according to the working environment, it is divided into liquid, gas, biological, etc.; according to the nature, it is divided into power ultrasonic, ultrasonic detection, ultrasonic imaging, etc.

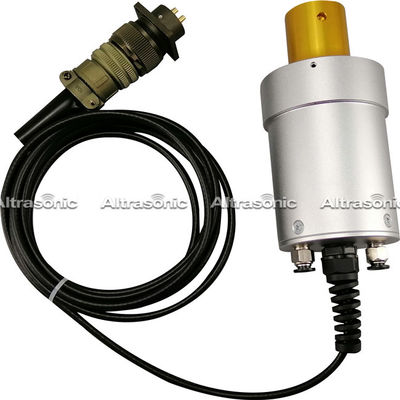

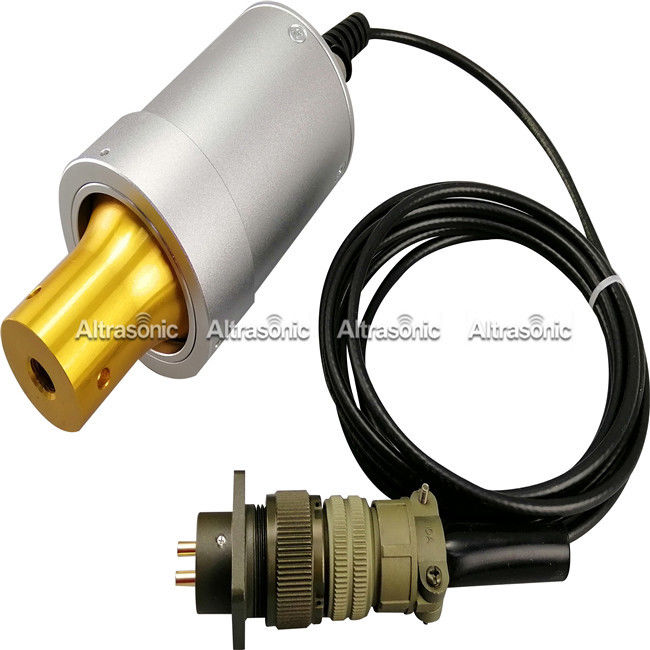

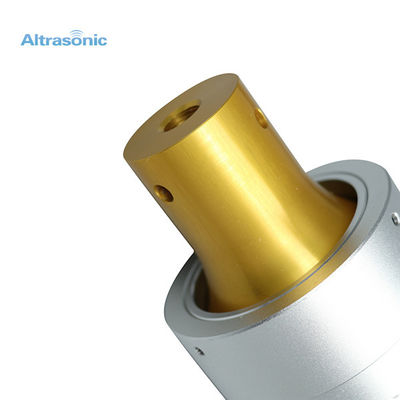

Detailed Images:

Dukane 41S30 Replacement 20Khz Ultrasonic Transducer For Cutting Welding 0



Dukane 41S30 Replacement 20Khz Ultrasonic Transducer For Cutting Welding 1Dukane 41S30 Replacement 20Khz Ultrasonic Transducer For Cutting Welding 2
