Product Details:
|
| Product Name: | Ultrasonic Spot Welding Machine | Frequency: | 35K |
|---|---|---|---|
| Power Adjustable:: | 30%-99% | Welding Type:: | Hand-held Operation Or Mounting On The Machine |
| Weight: | 10kgs | After-sales Service: | Online Support, Video Technical Support |
| Power: | 700w | Horn: | ≤10mm |
| Highlight: | 35k Ultrasonic Spot Welder,portable Ultrasonic Spot Welder,Ultrasonic portable Spot Welder |
||

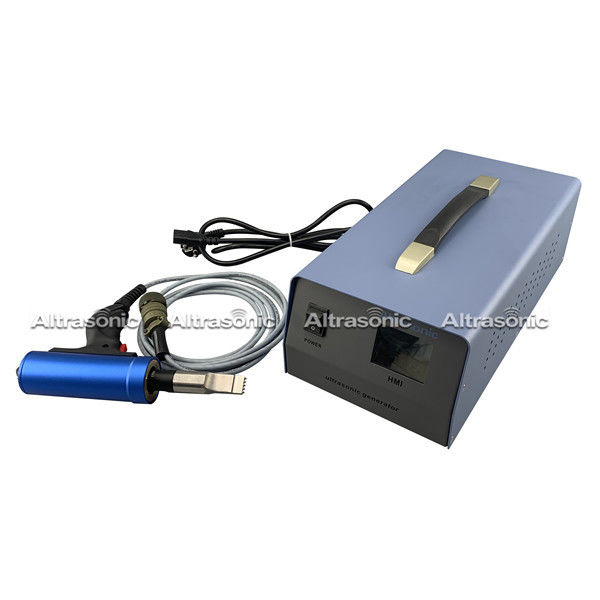

Portable 35k for automotive welding ultrasonic spot welding machine
Description:
When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.
Specification:
| Gun Type | Cylinder Type | ||||||
| Model | HS-35G | HS-28G | HS-28G | HS-20G | HS-28C | HS-28C | HS-28C |
| Frequency | 35k | 28k | 28k | 20k | 28k | 28k | 28k |
| Power | 700 | 300&500 | 400&700 | 900 | 300&500 | 400&700 | 500&800 |
| Horn | ≤10mm | ≤10mm | ≤12mm | ≤1m | ≤8mm | ≤12mm | ≤12mm |
| Housing Diameter | 51mm | 64mm | 40mm | 45mm | 60mm | ||
| Handle Size | 100mm×45mm×32mm | —— | —— | —— | |||
| Weight Without Wire and Horn | 0.6kg | 1.3kg | 1.3kg | 1.5kg | 0.6kg | 0.6kg | 1.3kg |
| Digital generator | ● | ● | ● | ● | — | ● | ● |
| Analog generator | ● | ● | ● | ● | ● | ● | ● |
Detailed Images:
The welding effect:
Types of Horn:
1. Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

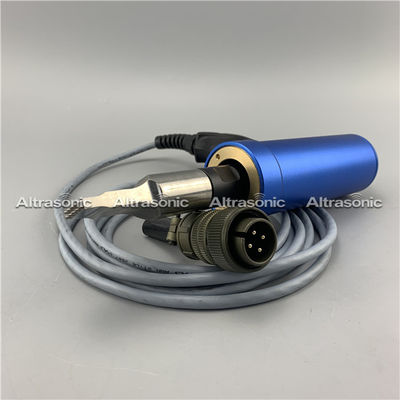

2. Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be
installed between the on machine, welding operation for each direction.
