Product Details:
|
| Frequency Range: | 10 K~200 KHZ | Measuring Range: | More Than 3 μm |
|---|---|---|---|
| Supply Power: | Built-in Power Supply (DC 3V) | Precision: | 2.5% |
| Highlight: | 10K Measuring Instrument,200K Measuring Instrument,3 μm Measuring Instrument |
||
10K-200K Amplitude Measuring Instrument for ultrasonic equipment testing
Specifications:
| Model | HS0901B |
| Precision | 2.5% |
| Sensitivity | 1 μm |
| Measuring Range | More than 3 μm |
| Frequency Range | 10 KHz – 200 KHz |
| Supply Power | Built-in power supply (DC 3V) |
| Type of Indicator | Digital |
|
Test direction |
Up or down |
Description:
Ultrasonic amplitude measuring instrument is a device specially used for ultrasonic amplitude measurement. It is used to measure the output amplitude of ultrasonic plastic welding, ultrasonic spot welding, cutting, sonochemistry, cell crushing and other equipment. It can also measure the output amplitude of ultrasonic transducer, ultrasonic horn and booster separately.
Advantages:
1.Delicate design
2.Reasonable structure
3.Simple operation
4.Rack and pinion adjustment for ease of operation
5.Total amplitude reading in microns, directly from the dial, eliminates the need for conversion

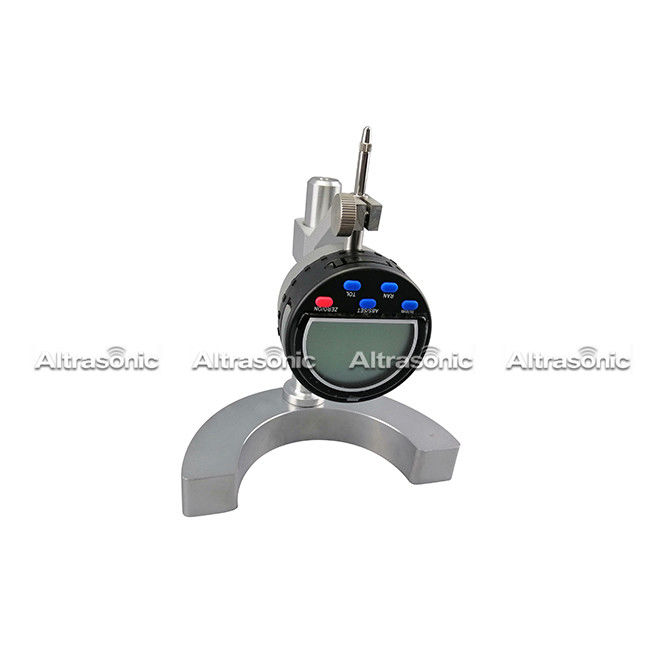

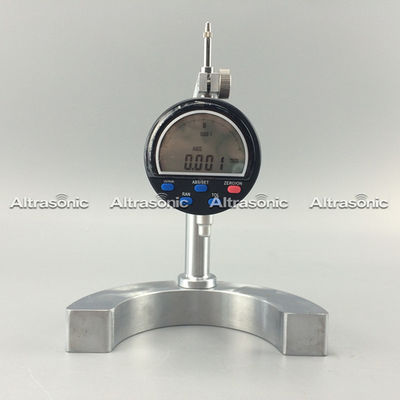

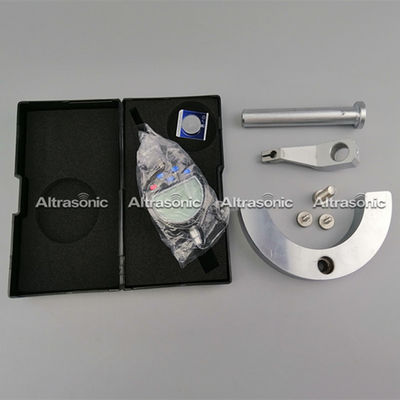

Detailed Image:
