Product Details:
|
Frequency: | 20Khz | Material: | Titanium |
---|---|---|---|
Power: | 2000W | Mold Type: | Steel Mold |
Effective Working Area: | 110*20mm | Warranty: | 1 Year |
High Light: | ultrasonic spot welder,ultrasonic plastic spot welder |

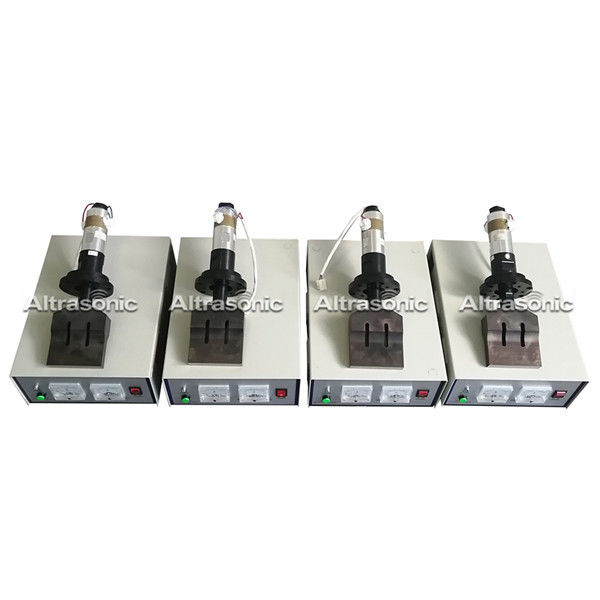

Steel Horn 20Khz Ultrasonic Welding System
Introduction:
Ultrasonic assembly is primarily used for thermoplastic joining. Compared with other plastic bonding techniques, ultrasonic plastic joining has the advantages of excellent welding quality, high production efficiency and wide application. The applications of ultrasonic welding are extensive and are found in many industries including electronic and electrical, automotive and aerospace, civil engineering, medical, and packaging.
Specification:
Frequency: 20kHz
Max Power: 2000Watt
Voltage: 110V / 220V, 50-60Hz
Working Temperature:5°C - 50°C
Generator:Analog
Steel horn: 110*20mm
Advantages:
1. Lightweight
Thanks to their plastic housing, the ultrasonic hand welding units are extremely light yet also robust
2. Ergonomic shape
The weight of the ultrasonic hand welding guns is perfectly balanced thanks to their design, making them feel even lighter to handle as a result
3. Service friendly
The converter can be changed over in no time
4. Convenient working
Operating the hand unit is simple, safe, comfortable and intuitive
5. Air cooling
Air cooling for the sonotrode and the converter is pre-integrated in the hand unit and should be used as required
Detailed Image:
