Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Ceramic Diameter: | 50mm |
|---|---|---|---|
| Type: | NTK Type | Joint Bolt: | M 12*1 |
| Capacitance: | 5~5.6nf | Application: | Welding |
| Highlight: | high frequency ultrasonic transducer,portable transducer |
||

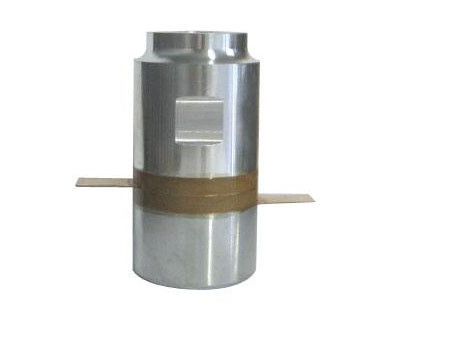

25Khz Waterproof Ultrasonic Transducer With Two Ceramics For Welding Machine
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Specifications:
| Model | HS-5025-2Z |
| Frequency | 25 Khz |
| Output power | 500 W |
| Joint bolt | M12*1 |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 2 pcs |
| Capacitance | 5~8 nF |
| Amplitude | 6 um |
| Application | Welding |
Ultrasonic Transducer introduction :
Ultrasonic transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The Ultrasonic transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices.
Ultrasonic Transducer features :
Detailed Images:
