Replacement Dukane 41s30 20 Khz Ultrasonic Transducer For Welding Or Cutting Machine

Replacement Dukane 41s30 20 Khz Ultrasonic Transducer For Welding Or Cutting Machine
Replacement Dukane 41s30 20 Khz Ultrasonic Transducer For Welding Or Cutting Machine Replacement Dukane 41s30 20 Khz Ultrasonic Transducer For Welding Or Cutting Machine Replacement Dukane 41s30 20 Khz Ultrasonic Transducer For Welding Or Cutting Machine

Large Image :  Replacement Dukane 41s30 20 Khz Ultrasonic Transducer For Welding Or Cutting Machine

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-D41S30
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 units per month

Replacement Dukane 41s30 20 Khz Ultrasonic Transducer For Welding Or Cutting Machine

Description
Product Name: Ultrasonic Converter Frequency: 20Khz
Ceramic Diameter: 50 Mm Capacitance: 11-17nf
Power: 2000w Application: Plastic Welding Machine
Ceramic Disc: 4pcs Material Of Booster: Titanium, Aluminum, Steel Materials Optional
High Light:

high frequency ultrasonic transducer

,

portable transducer

Replacement Dukane 41s30 20 Khz Ultrasonic Transducer For Welding Or Cutting Machine



Description:



    The Factory sale 20Khz replacement dukane 41s30 for welding or cutting machine  is applied to Dukane type ultrasonic welding machine.The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.


Specifications:



Model HS-D-41S30
Frequency 20 khz
Output power 1000 watt - 3000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs
Capacitance 11000 pf
Amplitude 20 um
Application welding machine




Applied Range:


Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing,packing, office supplies, toys, etc.

Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Features:
  • High efficiency
  • Perfect resonance image due to high-quality materials and select material pairings
  • Long service life even with large amplitudes
  • Stable design to protect sensitive ultrasonic components
  • 4 piezo disk design for maximum output amplitude

Detailed Images:

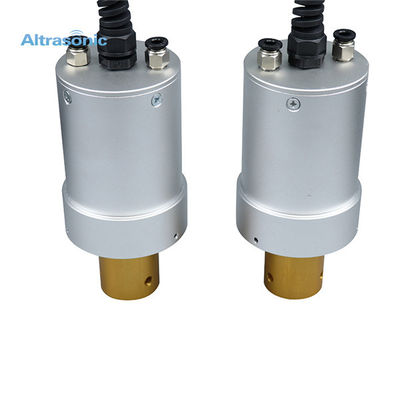

Replacement Dukane 41s30 20 Khz Ultrasonic Transducer For Welding Or Cutting Machine 0

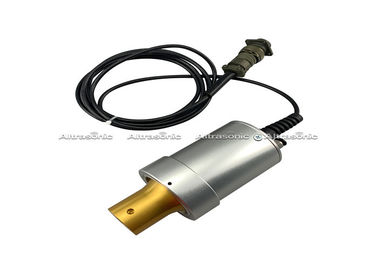

Replacement Dukane 41s30 20 Khz Ultrasonic Transducer For Welding Or Cutting Machine 1

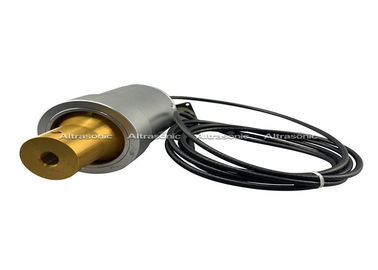

Replacement Dukane 41s30 20 Khz Ultrasonic Transducer For Welding Or Cutting Machine 2
