Product Details:
|
| Frequency: | 35khz | Application: | Sealing Or Welding |
|---|---|---|---|
| Components: | Ultrasonic Transducer, Generator And Wheel | Net Weight: | 280kg |
| Frequency Tuning Method: | Frequency Tuning Method | Name: | Ultrasonic Sealing Machine |
| Power: | 800watt | Certification: | CE |
| Warranty: | 1 Year | Delivery Time: | 15workdays |
| High Light: | ultrasonic sewing machine,ultrasonic sealing equipment |
||

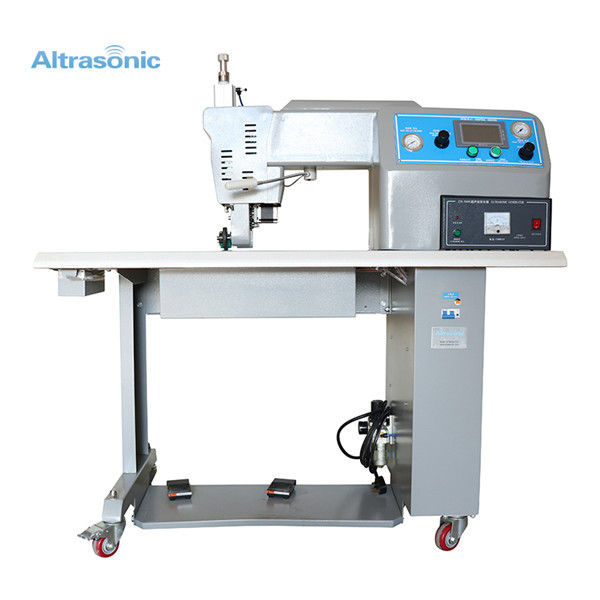

35kHz Ultrasonic Sealing Machine Sealing And Cutting Machine
Description:
The work method of Seamless sewing part is completely imitating traditional sewing machine. The biggest characteristic is the ultrasonic transmit horn work direction is same with the sewed cloth. Which will make the sewed point of the cloth are even, flat and fastness. Through suitable design, it can reach perfect sewing effectiveness.
|
1. Air filter assembly
|
2. Main power switch
|
|
3. Main air leakage switch
|
4. Ultrasonic current
|
|
5. Ultrasonic running button
|
6. Ultrasonic power switch
|
|
7. Ultrasonic alarm
|
8. Power indicator
|
|
9. Pressure controller of press wheel
|
10. Control center
|
|
11. Pressure indicator of press wheel
|
12. Upper press wheel
|
|
13. Ultrasonic converter
|
14. Left and right pedals
|
|
15. Upper cylinder column
|
16 Working lamp |
Specifications:
| Model | HS-WS35 |
| Frequency | 35 KHz |
| Power | 800 W |
| Rotary Welding Horns Width | 12 mm |
| Power Adjust Method | File or Continuous |
| The Horns Surface Hardness | More than HRC56 |
| Real-time Display | Working Frequency and Working Current |
| Synchronizing Wheel Specifications | 46XL Trapezoidal Tooth,Width16mm |
| Synchronizing Belt Matched | The Length is not more than730mm,the Width 12mm |
| Allowable Rotation Speed | 100 r/min. |
| Install Bolt | M8, 4 pcs |
Features:
Ultrasonic no sewing machine can stitch the fabric made of nylon, PVC, PU, TPU and TC. The high frequency can stick the fabric instead of needle and thread when ultrasonic machine works. It is a marked feature of this type machine that welding time is shorter and there is smokeless and no irritant taster especially for plastic materials. At the same this machine can improve the quality and improve the raise the efficiency of the products.

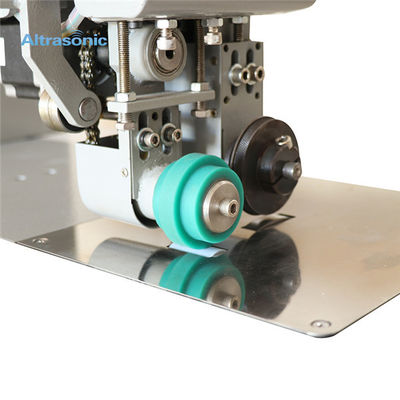

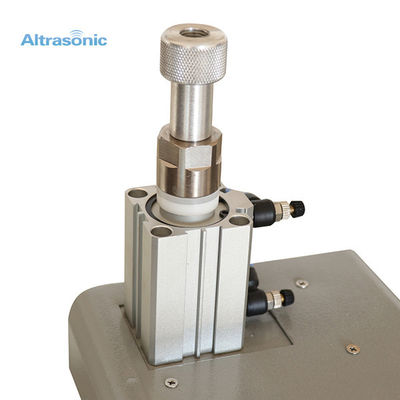

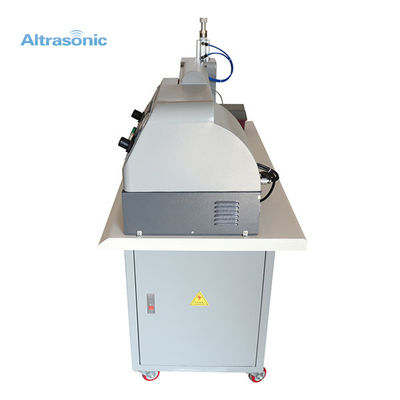

Detailed image:
Applications:
Usually used in clothing industry is the ultrasonic lace machine, which is mainly used in cutting and welding cloth. Owing to its transmit horn is a plane, so it only can turn its own geometric center and cant turn the same direction with the cloth. Which make the sewed point of the cloth is unevenness. The transmit horn of Seamless sewing part is a circumference horn, and can turn around . For the cloth, it is jointing with the cloth and working at the same time. The ultrasonic seamless sewing part advance ultrasonic lace machine and its market prospects are very bright.
Main advantages:
· More stability.
· Easy operation.
· The wheels and most of parts are made from titanium materials, long service life.
· Digital ultrasonic power supply, automatic tracking frequency, with real-time monitoring LCD screen.
· Easily integrated on customers' current processing line.
