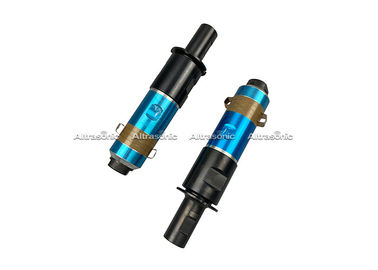

Sliver + Blue Color High Frequency Ultrasonic Piezo Transducer With Booster

Sliver + Blue Color High Frequency Ultrasonic Piezo Transducer With Booster
Sliver + Blue Color High Frequency Ultrasonic Piezo Transducer With Booster Sliver + Blue Color High Frequency Ultrasonic Piezo Transducer With Booster Sliver + Blue Color High Frequency Ultrasonic Piezo Transducer With Booster

Large Image :  Sliver + Blue Color High Frequency Ultrasonic Piezo Transducer With Booster

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-4Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton,PE foam inside
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, paypal
Supply Ability: 5000 pieces/month

Sliver + Blue Color High Frequency Ultrasonic Piezo Transducer With Booster

Description
Product Name: Ultrasonic Piezo Transducer Joint Bolt: M18*1.5
Ceramic Diameter: 50Mm Capacitance: 11~17Nf
Qty Of Ceramic: 4Pcs Frequency: 20Khz
Color: Sliver+ Blue Output Power: 1500W
Max.Amplitude: 10Um Application: Welding Machine
High Light:

high frequency ultrasonic transducer

,

portable transducer





20khz High Frequency Ultrasonic Transducer for welding





What is ultrasonic transducer?



Ultrasonic transducers are piezoelectric ceramics that resonate at ultrasonic frequencies and convert electrical signals into mechanical vibrations by the piezoelectric effect of the material. When the transducer is used as a transmitter, the electrical oscillating signal sent from the excitation source will cause a change in the electric or magnetic field in the electrical energy storage element of the transducer, which changes the mechanical vibration system of the transducer through some effect. A driving force is generated to cause it to vibrate, thereby propelling the medium in contact with the mechanical vibration system of the transducer to vibrate and radiate sound waves into the medium.



Sliver + Blue Color High Frequency Ultrasonic Piezo Transducer With Booster 0



Specifications:



Model

HS-5020-4Z

Frequency 20 khz
Output power

1500W

Joint bolt M18*1.5
Ceramic Diameter 50 mm
Quantity of Ceramic discs 4 pcs
Capacitance

11~17Nf

Amplitude 10 um
Application welding machine





Main Features:



♦ High mechanical quality

♦ Piezoelectric element offer a high speed of vibration.

♦ Having steady output amplitude even the load markedly changed.
♦ Extended using temperature, ensuring good amplitude linearity

♦ Bolt-on mounting gives the fast, easy installation and high reliability.

♦ Easy for assembling

♦ Good heat resistance

♦ Large range of working temperature

♦ Low resonance impedance and heat productivity



Competitive Advantage:



1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation



Warranty:



We offer the same warranty as the OEM, namely, one years, free replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).

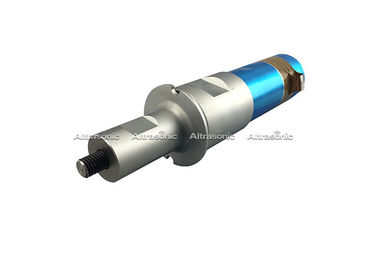

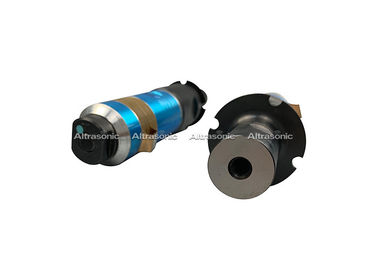

Detail Images:
Sliver + Blue Color High Frequency Ultrasonic Piezo Transducer With Booster 1Sliver + Blue Color High Frequency Ultrasonic Piezo Transducer With Booster 2



certification:
                                           Sliver + Blue Color High Frequency Ultrasonic Piezo Transducer With Booster 3
                               Sliver + Blue Color High Frequency Ultrasonic Piezo Transducer With Booster 4
