Dukane 41S30 Ultrasonic Welding Transducer Replacement Ultrasonic Converter Type

Dukane 41S30 Ultrasonic Welding Transducer Replacement Ultrasonic Converter Type
Dukane 41S30 Ultrasonic Welding Transducer Replacement Ultrasonic Converter Type Dukane 41S30 Ultrasonic Welding Transducer Replacement Ultrasonic Converter Type Dukane 41S30 Ultrasonic Welding Transducer Replacement Ultrasonic Converter Type

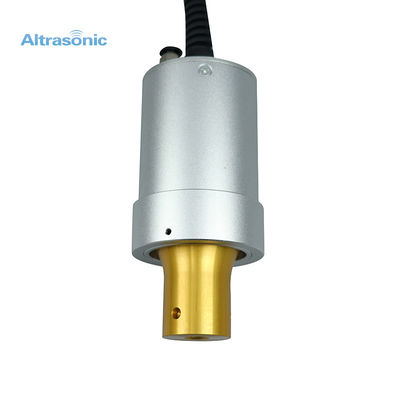

Large Image :  Dukane 41S30 Ultrasonic Welding Transducer Replacement Ultrasonic Converter Type

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-D41S30
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Delivery Time: 5 workdays
Payment Terms: T/T, Western Union,paypal
Contact Now

Dukane 41S30 Ultrasonic Welding Transducer Replacement Ultrasonic Converter Type

Description
Frequency: 20kHz Output Power: 1000-3000watt
Joint Bolt: 1/2-20 UNF Ceramic Disc Diameter: 50mm
Qty Of Ceramic Discs: 4pcs Capacitance: 11nf
Amplitude: 20 Um Application: Plastic Welding Machine
Warranty: 1 Year Type: Customized
Highlight:

high frequency ultrasonic transducer

,

portable transducer



Dukane 41S30 Ultrasonic Welding Transducer Replacement Ultrasonic Converter Type





Specifications:

Model
HSD41S30
Frequency
20Khz
Output power
1000-3000 watt
Joint bolt
1/2-20 UNF
Ceramic disc Diameter
50mm
Qty of ceramic discs
4pcs
Capacitance
11nf
Amplitude
20 um
Application
Plastic welding machine


Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,which can be widely used to do welding in various kinds of industries.


Applied Industries :automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing, packing, office supplies, toys, etc.


Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.


Features:

1. Low calorific value.
2. Good thermal stability.
3. The frequency is consistent with the static capacitance.
4. The resonance impedance is low.
5. Long average life.
6. Can be used in a variety of ultrasonic welding equipment and cleaning equipment


Our Service:

Conforming to the spirit of "Service First", ALTRASONIC provides lifetime maintenance to its products for as long as they are used by customers.
Altrasonic’s service team is 24/7 available for support. Our well trained and experienced service engineers advise and support on-line or if necessary on location. Whether a custom-made production line or a standard machine: we always ensure that production can be resumed as soon as possible.

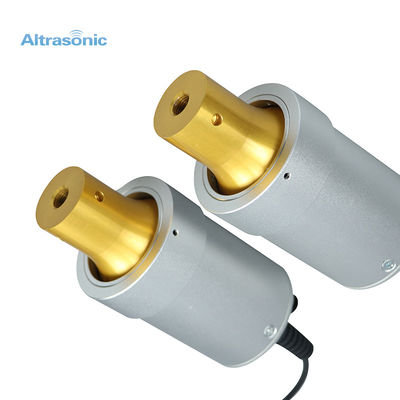

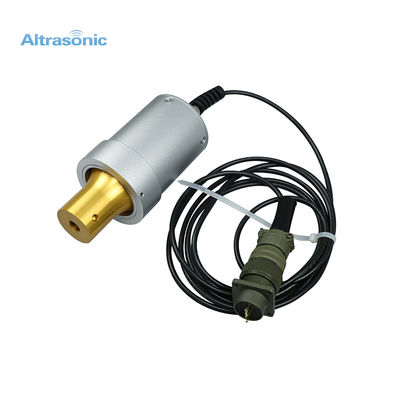

Product Display:



Dukane 41S30 Ultrasonic Welding Transducer Replacement Ultrasonic Converter Type 0Dukane 41S30 Ultrasonic Welding Transducer Replacement Ultrasonic Converter Type 1







Tag:

high frequency ultrasonic transducer,

portable transducer,

ultrasonic piezoelectric transducer
