Product Details:
|
| Product Name: | Ultrasonic Spot Welding Machine | Model Number:: | HS-35G |
|---|---|---|---|
| Frequency: | 35Khz | Power: | 700 |
| Horn: | ≤10mm | Housing Diameter: | 51mm |
| Handle Size: | 100mm×45mm×32mm | Weight Without Wire And Horn: | 0.6kg |
| Type: | Gun Type | Application: | Automotive Parts |
| Highlight: | sonic welding machine,portable spot welder |
||

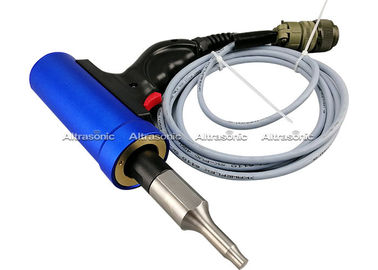

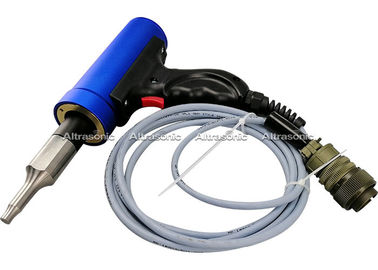

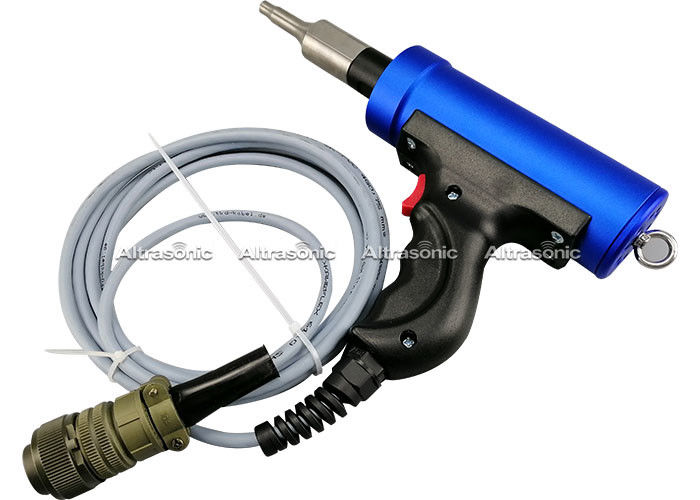

35Khz 700W Ultrasonic Spot Welding Machine With Netted Weld Surface
Description:
Portable ultrasonic spot welding machine is an assembly technique for joining two thermoplastic components at localised points without the necessity for preformed holes or an energy director. Spot welding produces a strong structural weld and is particularly suitable for large parts, sheets of extruded or cast thermoplastic, and parts with complicated geometry and hard-to-reach joining surfaces.
Specification:
| Gun Type | Cylinder Type | ||||||
| Model | HS-35G | HS-28G | HS-28G | HS-20G | HS-28C | HS-28C | HS-28C |
| Frequency | 35k | 28k | 28k | 20k | 28k | 28k | 28k |
| Power | 700 | 300&500 | 400&700 | 900 | 300&500 | 400&700 | 500&800 |
| Horn | ≤10mm | ≤10mm | ≤12mm | ≤1m | ≤8mm | ≤12mm | ≤12mm |
| Housing Diameter | 51mm | 64mm | 40mm | 45mm | 60mm | ||
| Handle Size | 100mm×45mm×32mm | —— | —— | —— | |||
| Weight Without Wire and Horn | 0.6kg | 1.3kg | 1.3kg | 1.5kg | 0.6kg | 0.6kg | 1.3kg |
| Digital generator | ● | ● | ● | ● | — | ● | ● |
| Analog generator | ● | ● | ● | ● | ● | ● | ● |
Principle:
When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.
Main advantages:
♦ Rapid sonotrode exchange
♦ High quality, heavy duty aluminum housing
♦ High frequency and control cable to the ultrasound generator are in a strong and highly flexible braided plastic sheet
♦ Timer-controlled air cooling as an option
♦ Mobile – can be transported by handle on the generator case
Applications:
1. Plastic hardware riveting, welding, embossing, folder location technology, decorative ribbons, spot welding, rivet welding etc..
2. Electronic and electrical appliances, auto parts, clothing, packaging, textile industry, environmental protection industry, medical equipment, toy industry, communications equipment and other industries.
3. Even it has large difference physical properties between each materials, it can be a good welding. It also besuitable for metal foil, flaments, tiny device and thickness disparity, multilayer sheet metal welding.
WHY CHOOSE ALTRASONIC ?
1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.
2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.
4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.
