Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Model Number:: | HS-7015-4Z |
|---|---|---|---|
| Connect Screw: | M20*1.5 | Ceramic Diameter: | 70Mm |
| Qty Of Ceramic: | 4Pcs | Frequency: | 15Khz |
| Capacitance: | 12.5-14 Nf | Output Power: | 2600W |
| Max.Amplitude: | 16Um | Application: | Welding Machine |
| Highlight: | high frequency ultrasonic transducer,portable transducer |
||

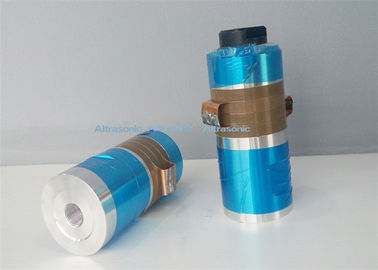

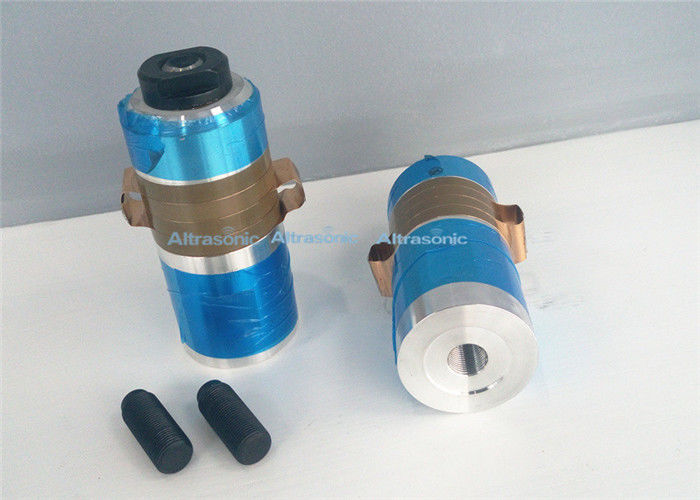

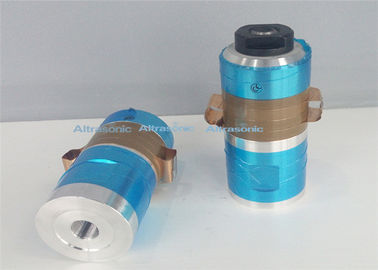

15Khz Ultrasonic Welding Transducer With High Frequency , High Power 2600 Watt
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic chips sandwiched under pressure between two metal blocks. Between each chip is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Specifications:
| Model | HS-7015-4Z |
| Frequency | 15khz |
| Output power | 2600Watt |
| Connect Screw | M20*1.5 |
| Ceramic Diameter | 70 mm |
| Quantity of Ceramic | 4 pcs |
| Capacitance | 12.5-14nf |
| Amplitude | 16um |
| Application | Welding Machine |
Ultrasonic Transducer introduction :
Ultrasonic transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.
What is Ultrasonic Welding ?
Ultrasonic welding is an industrial technique whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid-state weld. It is commonly used for plastics, and especially for joining dissimilar materials. In ultrasonic welding, there are no connective bolts, nails, soldering materials, or adhesives necessary to bind the materials together.
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries:
Automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing,packing, office supplies, toys, etc.
Applied Machines:
Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Competitive Advantage:
1. Imported ceramic chips and Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
