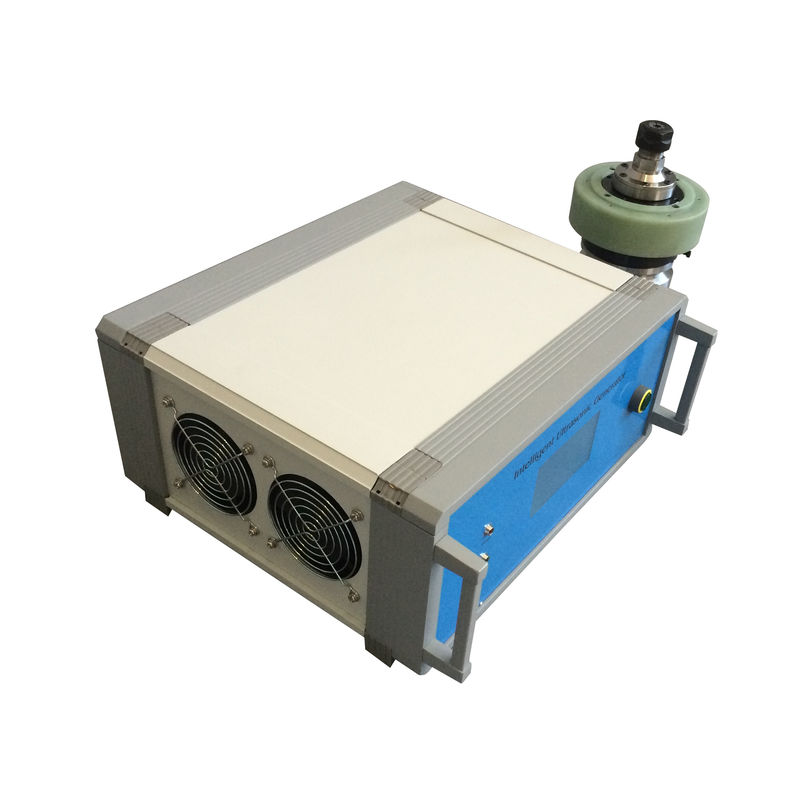

20Khz Ultrasonic Assisted Drilling Machining For Quartz And Alumina Ceramic

20Khz Ultrasonic Assisted Drilling Machining For Quartz And Alumina Ceramic
20Khz Ultrasonic Assisted Drilling Machining For Quartz And Alumina Ceramic 20Khz Ultrasonic Assisted Drilling Machining For Quartz And Alumina Ceramic 20Khz Ultrasonic Assisted Drilling Machining For Quartz And Alumina Ceramic

Large Image :  20Khz Ultrasonic Assisted Drilling Machining For Quartz And Alumina Ceramic

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-M2010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month

20Khz Ultrasonic Assisted Drilling Machining For Quartz And Alumina Ceramic

Description
Power: 500W Frequency: 20Khz
Application: Ultrasonic Machining Components: Digital Generator, Transducer, Booster, Horn
Voltage: 220 V / 110V Generator: Digital Generator
High Light:

ultrasonic vibration machine

,

ultrasonic drilling machine





Ultrasonic Assisted Drilling Machining 20Khz For Quartz And Alumina Ceramic







Introduction:



Ultrasonic machining is a machining operation in which a vibrating tool oscillating at ultrasonic frequencies is used to remove material from the workpiece, aided by an abrasive slurry that flows freely between the workpiece and the tool. It differs from most other machining operations because very little heat is produced. The tool never contacts the workpiece and as a result the grinding pressure is rarely more than 2 pounds, which makes this operation perfect for machining extremely hard and brittle materials.







Specification:



Resonance point amplitude: 10um or more;

Speed: 3000 r / min or less

Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;

Power: 500W



Frequency 20 Khz
Output Power 500 W
Voltage 220 V / 110V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic drilling
Generator Digital Generator
Length of cable 5M





Applications:



1.Applying in elaborate processing for various kinds of materials especially fragile rigid material.

2.The milling process by using rotate milling cutter is suit for processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.

3.Application area: machining industry, machine tool equipment manufacturing

4.Application occasion: manufacturing enterprise, universities and colleges, scientific research institution, mechanical equipment transformation industry







Advantage:



1. The cutting force is small, about 1/3-1/10 of the cutting force of ordinary tools.

2. High processing accuracy depends mainly on the accuracy of the machine tool used, and the tolerance of the machined workpiece can be approached to the machine-related accuracy.

3. The cutting temperature is low and the workpiece is kept at room temperature.

4. No built-up edge, small workpiece deformation, no burrs.



20Khz Ultrasonic Assisted Drilling Machining For Quartz And Alumina Ceramic 0

20Khz Ultrasonic Assisted Drilling Machining For Quartz And Alumina Ceramic 1
