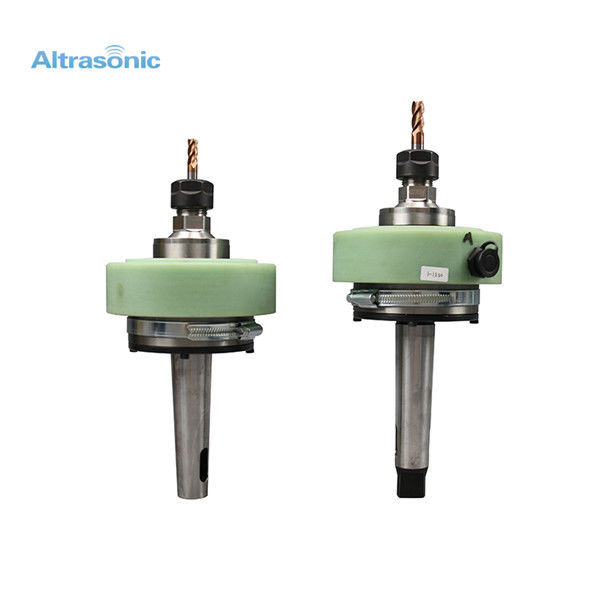

BT40 Spindle BT50 Spindle Ultrasonic Machining Tool Holder With Drilling Tip Milling Tip

BT40 Spindle BT50 Spindle Ultrasonic Machining Tool Holder With Drilling Tip Milling Tip
BT40 Spindle BT50 Spindle Ultrasonic Machining Tool Holder With Drilling Tip Milling Tip BT40 Spindle BT50 Spindle Ultrasonic Machining Tool Holder With Drilling Tip Milling Tip BT40 Spindle BT50 Spindle Ultrasonic Machining Tool Holder With Drilling Tip Milling Tip

Large Image :  BT40 Spindle BT50 Spindle Ultrasonic Machining Tool Holder With Drilling Tip Milling Tip

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-M2010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month

BT40 Spindle BT50 Spindle Ultrasonic Machining Tool Holder With Drilling Tip Milling Tip

Description
Power: 1000W Frequency: 20Khz
Generator: Digital Application: Ultrasonic Drilling/Milling
Components: Digital Generator, Transducer, Booster, Horn
High Light:

ultrasonic grinding machine

,

ultrasonic vibration machine





BT40 Spindle BT50 Spindle Ultrasonic Machining Tool Holder With Drilling Tip, Milling Tip



Technical Parameters:

Amplitude: 10um or more;
Max Speed: 30000 RPM
Matching tool:drill head Φ2-Φ6; carbide end mill head Φ2-Φ13; disk cutter Φ50;drilling hear Φ1~6



Frequency 20 Khz
Output Power 1000 W
Voltage 220 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic drilling,milling grinding
Generator Digital Generator
Length of cable 5M



Ultrasonic Machining:

Rotary ultrasonic machining (RUM) is a mechanical type of nontraditional hybrid machining process that has been utilized potentially to machine a wide range of latest and difficult-to-machine materials, including ductile, hard and brittle, ceramics, composites, etc. In RUM, the basic material removal phenomenon of ultrasonic machining (USM) and conventional diamond grinding amalgamates together and results in higher material removal rate (MRR), improved hole accuracy with superior surface finish. In the current article, several investigations carried out in the domain of RUM for enormous materials have been critically reviewed and reported. It also highlights several experimental and theoretical ensues of RUM to improve the process outcomes and it is reported that process performance can be substantially improved by making the right selection of machine, diamond tooling, material and operating parameters. In recent years, various investigators have explored umpteen ways to enhance the RUM process performance by probing the different factors that influence the quality attributes.


Machining process:

The vibration enables an abrasive fluid to be projected onto the part. This fluid is purposely injected at a very high frequency between the tool and the part to be machined and results in the machining of the material due to the rubbing of the abrasive on the part. The efficiency and quality of the machining then depend upon the following parameters : abrasive quality and content, tool grade, machining speed, vibration range.


Competitive Advantages:



  • Capability to machine such fragile materials as silica since there is no contact between the tool and the part
  • Capability to machine such hard materials as boron carbide, silicon carbide, silicon nitride
  • Machining of such peculiar shapes as square or hexagonal holes even in very small dimensions - less than 1 mm
  • Drilling of long holes - ratio diameter-to-length greater than 10 for small diameters
  • This machining technique also makes it possible to carry out usual drilling operations of small diameter holes - about 0.4 mm.


Application:

Crystal, precious stones, agate, jade, glass products, ceramic utensils and germanium, silicon, ferrite and other high hardness materials drilling and carving.


FAQ:

1. Q: What kind of tool handle is commonly used for drilling machine?
A: R8 handle.
2. Q: How many kinds of handle for ulrasonic assisted processing?
A: BT (top narrow bottom wide); HSK (cylindrical); R8 (small round tube).





BT40 Spindle BT50 Spindle Ultrasonic Machining Tool Holder With Drilling Tip, Milling Tip



BT40 Spindle BT50 Spindle Ultrasonic Machining Tool Holder With Drilling Tip Milling Tip 0

BT40 Spindle BT50 Spindle Ultrasonic Machining Tool Holder With Drilling Tip Milling Tip 1

BT40 Spindle BT50 Spindle Ultrasonic Machining Tool Holder With Drilling Tip Milling Tip 2
