Product Details:
|
| Frequency: | 20kHz | Input Power: | 900 Watt |
|---|---|---|---|
| Qty Of Ceramic: | 4 Pcs | Ceramic Diameter:: | 25mm |
| Joint Bolt: | M8*1.25 | Max. Amplitude: | 6um |
| High Light: | piezo ultrasonic transducer,ultrasonic transducers |
||

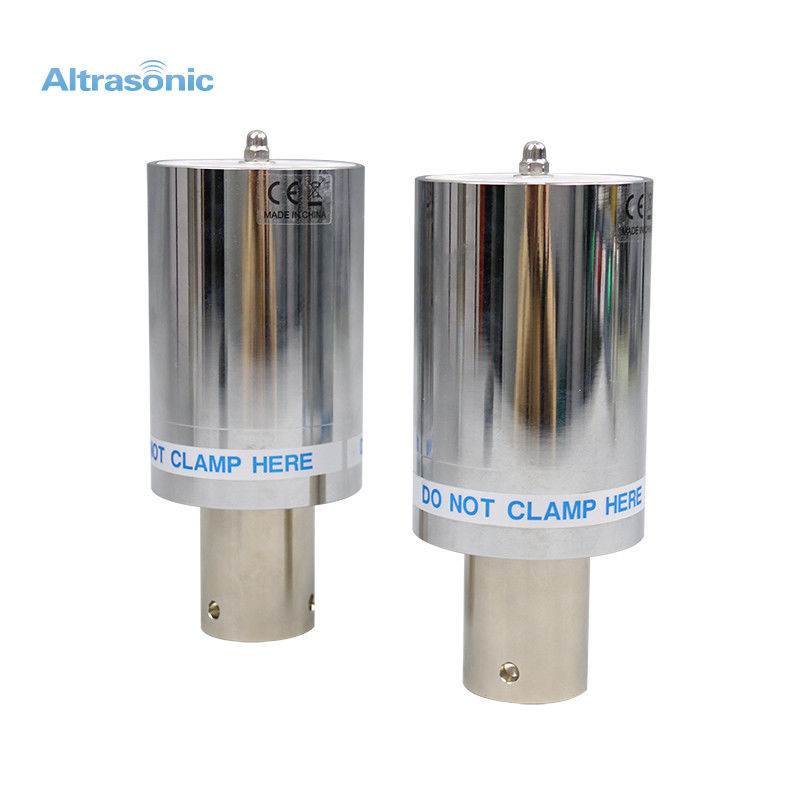

40khz Replacement Branson 402 Ultrasonic Welding Transducer With Protective Housing
Description:
The transducer is composed of vibrators and booster, which function is to convert electrical signals into mechanical vibration signals, and to realize the conversion of electrical energy to mechanical energy, which is also one of the most important factors in ultrasonic welding technology.
Specifications:
| Model | HS-B402 |
| Frequency | 20khz |
| Output power | 900watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 25mm |
| Quantity of Ceramic discs | 4pcs |
| Capacitance | 4.2nF |
| Amplitude | 6um |
| Application | welding machine |
Applied Range:
1. The piezoelectric ceramic chip can give a strong and stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of
piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will
identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
