Product Details:
|
| Frequency: | 20kHz | Output Power: | 2000 Watt |
|---|---|---|---|
| Joint Bolt: | 1/2-20UNF | Ceramic Disc Diameter: | 50 Mm |
| Quantity Of Ceramic Discs: | 2 Pcs | Amplitude: | 20 Um |
| Highlight: | high frequency ultrasonic transducer,portable transducer |
||

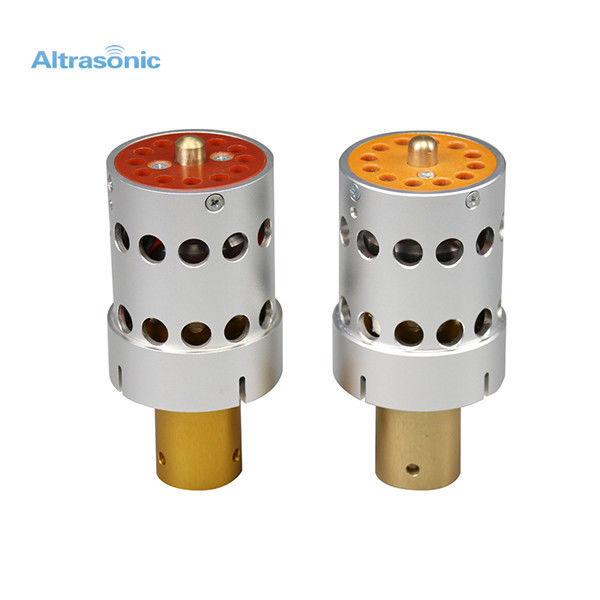

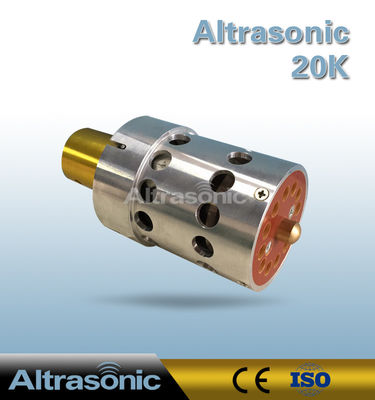

ultrasonic welding machine used replacement Dukane 20kHz ultrasonic transducer
Specifications:
| Model | HSD20 |
| Frequency | 20 khz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 2 pcs |
| Capacitance | Different item No., with different capacitance |
| Amplitude | 20 um |
| Application | welding machine |
| MODEL | FREQUENCY(KHz) | Ca(pf) | Power(W) | Machine |
| 402 | 19.6-20.0 | 7800-8500 | 450-900 | BRANSON8400 |
| 502 | 19.6-20.0 | 11500-12500 | 2000 | BRANSON8800/5170 |
| CJ20 | 19.4-19.7 | 19000-21000 | 1100-4000 | BRANSON2000 series |
| CB35A15A | 36.5-37.5 | 3300-4000 | 800 | Rinco-35A15A |
| CV231 | 38.3-39.0 | 3500-4500 | 900 | 40K Metal welding |
| CV3510 | 36.2-37.0 | 3200-4000 | 800 | Rinco-CV3510 |
| 110-3122 | 19.6~20.0 | 12500-14000 | 2600 | Dukane heavy duty |
Description:
1. High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
2. Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.
3. Big Power: under the function of the prestressed force screw rod, the piezoelectric ceramics can work freely in the highest level of power.
4. In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and high reliability.
Features: easy installation, stable and reliable, superior performance.
Scope of application: mainly used for the welding of non-woven, bag making machine, zipper, finalize the design
Applications:
Our transducer can applied in the following ultrasonic machines:
| Ultrasonic welding machine |
All material with thermoplasticity can use Ultrasonic welding machine , it can welding the material more easy and stable.Such like plastic, fabric,ABS, nonwovens. |
| Ultrasonic cutting machine |
Ultrasonic food cutting is popular because the perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same time. |
| Ultrasonic sewing machine | Ultrasonic sewing can sewing the material without any cotton, and keep longer time. |
Competitive Advantage:
Service: Timely feedback; Free design; 1 year Warranty.
Quality: Full testing before shipping; we reputation from customer.
Packing
1)Seaworthy pack: Bubble pack+stretch films+wood frame with marks of product information
2)Packing method can be also changed according to the clients' special requirement
