Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board

Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board
Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board

Large Image :  Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month

Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board

Description
Product Name: Ultrasonic Spot Welding Machine Frequency: 30Khz
Power: 500~800W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Working Environment: +5~+50℃ Keeping Environment: -5~+70℃
Net Weight: 10Kgs Max Current: 15A
High Light:

portable spot welding machine

,

sonic welding machine

Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board



Description:



Ultrasonic welding is a high-tech technology of sintered plastic products. The use of this technology can replace past production of flux, adhesives, buckles or other mechanical fixation, thereby improving the production efficiency and reduce costs. It is suitable for the welding of automotive sound proofing cotton, and automobile rear wing board.



Specifications:



  Gun Type& Cylinder Type
Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg

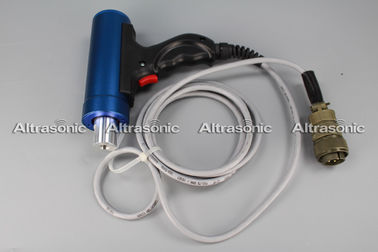

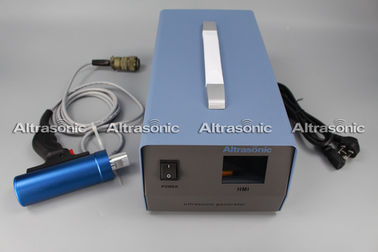

Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

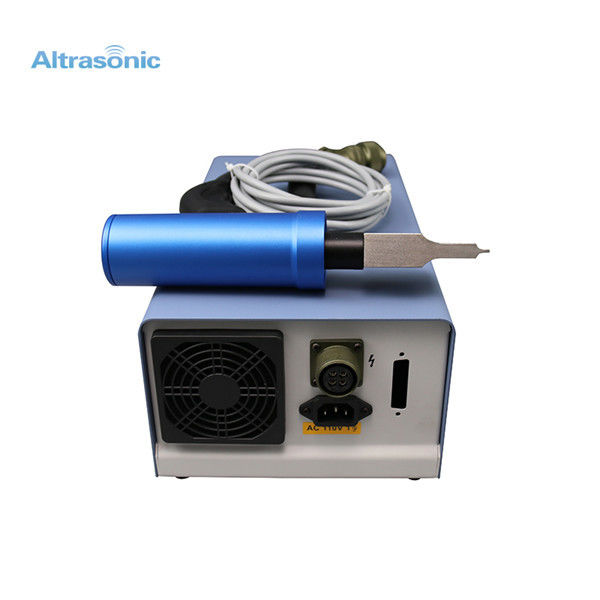

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.



Affecting Factors in Ultrasonic Welding:



Ultrasonic automotive plastics as the condition of ultrasonic welding, the most important is the time to apply welding energy (vibration, welding time) length and pressure, of course, other conditions are also very important. Welding temperature ultrasonic welding material viscosity flow temperature. Otherwise the material will not melt.



Attention for Welding:



The welding time varies depending on the material and the shape of the product. The welding time of some molded articles is only 0.2 seconds. Over time will cause excessive welding and produce a lot of flash and bubble, resulting in poor airtight, must pay attention. Cooling (holding) time For crystalline plastic, if the temperature below the melting point, the connection will be solidified, usually the pressure time is maintained between 0.1-0.2 seconds. AMMA plastic).



Applications In Automobile:



Ultrasonic Spot Welding is mainly used in automotive interior parts. Ultrasonic spot welding in sound-proof cotton of engine cover, trunk and wheel casing, and hallstand felt. Ultrasonic Riveting Welding can be used in automobile air-conditioning outlet welding, car rear view mirror, car door handles, hand car door and so on.



Automotive plastic parts are mostly welded in non-standard ultrasonic welding equipment, long multi-station design, with PCL program control and LCD operation, large automotive complex workpiece welding, including different directions of the welding surface, in multiple locations.



Advantages and Disadvantages of Ultrasonic in Auto Industry.



Advantages:



1. application in riveting, forming and welding

2. light weight, easy to take, easy to operate (handheld)

3. Equipped with welding timer

4. Easily set time welding

5. Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)

6. FET power output

7. Automatic resonance

8. Maintain the amplitude function automatically

9. Starting: achieving maximum power with 105msec



Disadvantages:



Limitation of measure, shape and material.(ultrasonic welding for PP, PC, ABS, PA, PS, AMMA plastic).



Principle of Amplifying:

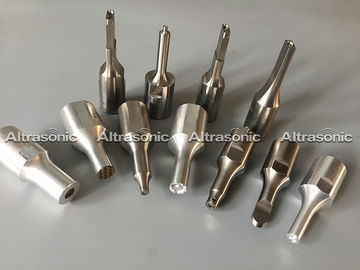

Components of Ultrasonic Welding (Horn, Booster and Transducer)

They can amplify the amplitude at a particular ratio step by step. For example, the transducer amplitude is 6mm, the booster can amplify it triply to 18mm, and then the horn can make it to 36mm. However, the work life of horn would be shortened with the amplification of amplitude. The required amplitude differs with the welding material.



Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board 0



Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board 1Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board 2Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board 3Easy Operate Ultrasonic Puncture Handle Welder For Automobile Rear Wing Board 4
