Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Joint Bolt: | 1/2-20UNF |
|---|---|---|---|
| Ceramic Diameter: | 50mm | Type: | Branson Type |
| Application: | Welding | Qty Of Ceramic: | 6pcs |
| Capacitance: | 20nF | Power: | 3300watt |
| Highlight: | high frequency ultrasonic transducer,portable transducer |
||

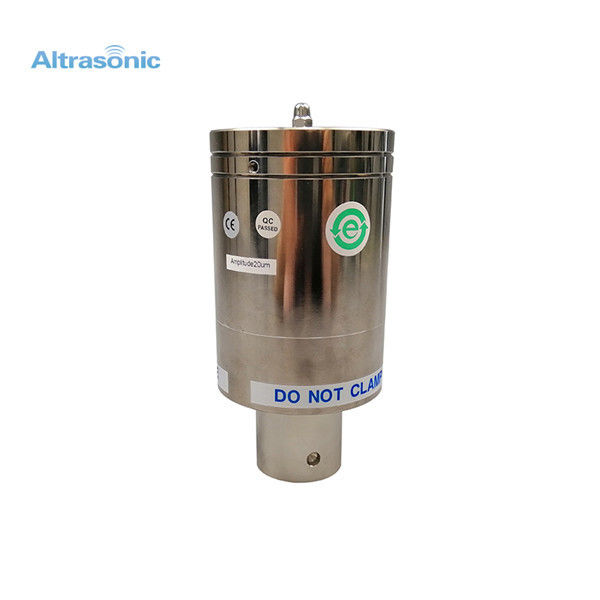

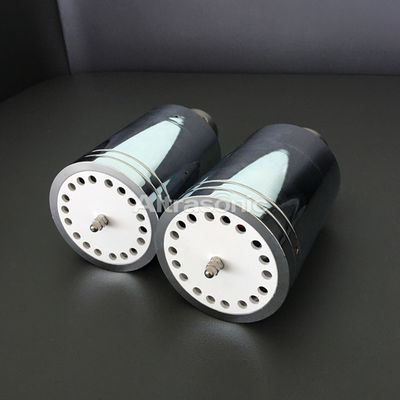

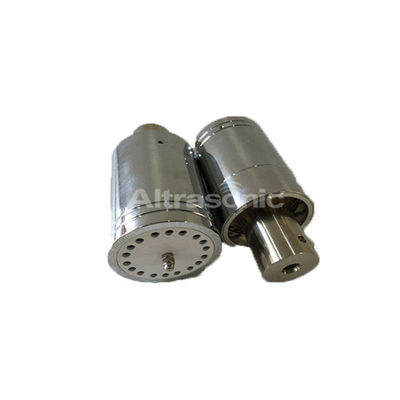

Replacement Branson CJ20 Ultrasonic Welding Transducer Ultrasonic Piezo Transducer
Specifications:
|
Model |
HS-BCJ20 |
|
Frequency |
20khz |
|
Output power |
3300watt |
|
Joint bolt |
1/2-20UNF |
|
Ceramic disc Diameter |
50mm |
|
Quantity of Ceramic discs |
6pcs |
|
Amplitude |
20um |
|
Application |
Welding |
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applications:
Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.
We mainly supply two kinds of Ultrasonic transducers: NTK type and Branson type. Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.
Competitive Advantage:
1. Stable parameters
2. Easy matching with ultrasonic power supply
3. Superior raw materials
4. Accept OEM cooperation
