Product Details:
|
| Joint Bolt: | M20*1.5 Or M16*1 | Ceramic Diameter: | 60mm |
|---|---|---|---|
| Type: | NTK Type | Application: | Welding |
| Qty Of Ceramic: | 4pcs | Capacitance: | 8-10nF,10-12nF, 12.5-13.5nF |
| Power: | 2200watt | Amplitude: | 16um |
| Highlight: | high frequency ultrasonic transducer,portable transducer |
||

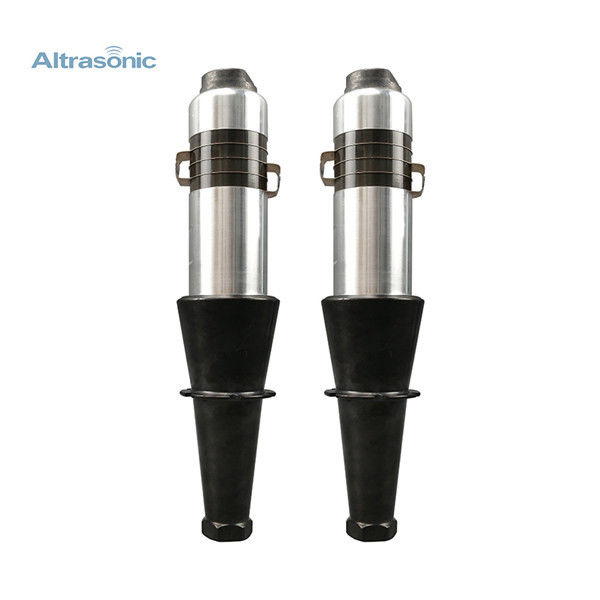

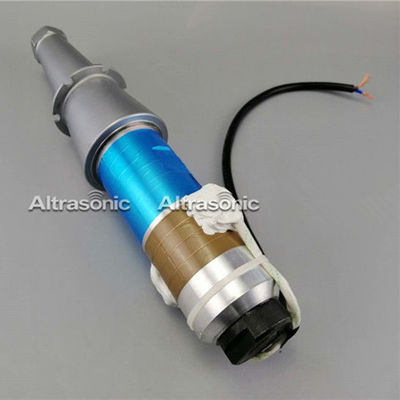

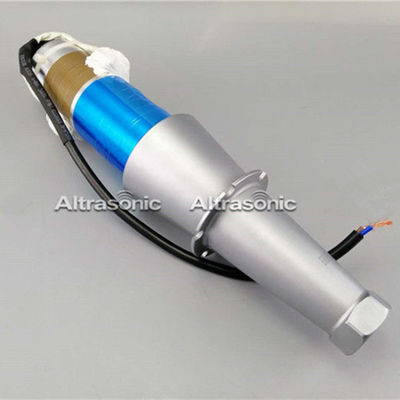

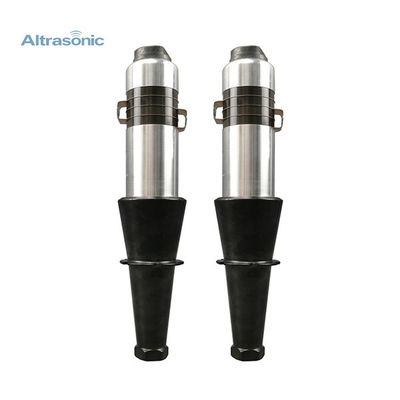

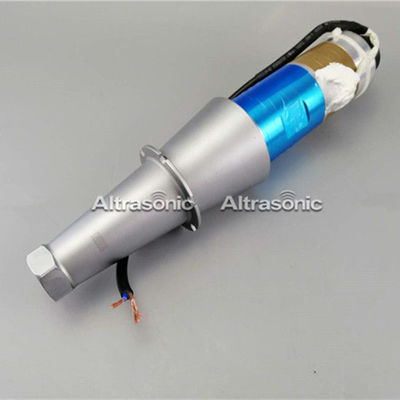

15Khz Ultrasonic Welding Transducer With Aluminum Booster For Plastic Welding
Specifications:
|
Model |
HS-6015-4Z |
|
Frequency |
15khz |
|
Output power |
2200watt |
|
Joint bolt |
M20*1.5 or M16*1 |
|
Ceramic disc Diameter |
60mm |
|
Quantity of Ceramic discs |
4pcs |
|
Amplitude |
16um |
|
Application |
Welding |
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applications:
Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.
We mainly supply two kinds of Ultrasonic transducers: NTK type and Branson type. Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.
| The columnar type NTK TYPE (stabilized power and high reliablity widely application) | ||||||||||
| Item No. | Connect screw (Size) | Ceramic diameter (mm) | Quantity of Ceramic (pc) | Resonance frequency (khz) | Resistance (Ω) | Capacitance | Input power (W) | Max. Amplitude (um) | ||
| Yellow | Grey | Black | ||||||||
| 7015-4Z | M20 X 1.5 | 70 | 4 | 15 | 15 | 12500-14000 | / | 17000-19000 | 2600 | 10 |
| 6015-4Z | M20 X 1.5 or M16 X 1 | 60 | 4 | 15 | 15 | 8000-10000 | 10000-12000 | 12500-13500 | 2200 | 10 |
| 6015-6Z | M20 X 1.5 | 60 | 6 | 15 | 15 | 14000-16000 | / | 19500-21000 | 2600 | 10 |
| 5015-4Z | M18 X 1.5 | 50 | 4 | 15 | 15 | 12000-13000 | 13000-14300 | 15000-17000 | 1500 | 8 |
| 4015-4Z | M16 X 1 | 40 | 4 | 15 | 15 | 10000-11000 | 10500-11500 | 700 | 8 | |
| 5520-4Z | M18 X 1 | 55 | 4 | 20 | 15 | 10000-11000 | 10500-11500 | 14300-20000 | 2000 | 8 |
| 5020-6Z | M18 X 1.5 | 50 | 6 | 20 | 15 | 18500-20000 | / | 22500-25000 | 2000 | 8 |
| 5020-4Z | M18 X 1.5 | 50 | 4 | 20 | 15 | 11000-13000 | 13000-15000 | 15000-17000 | 1500 | 8 |
| 5020-2Z | M18 X 1.5 | 50 | 2 | 20 | 20 | 6000-6500 | 6500-7000 | 8000-9000 | 800 | 6 |
| 4020-4Z | 1/2-20UNF | 40 | 4 | 20 | 15 | 9000-10000 | 9500-11000 | / | 900 | 6 |
| 4020-2Z | 1/2-20UNF | 40 | 2 | 20 | 25 | / | 4800-5500 | / | 500 | 5 |
| 5025-2Z | M12 X 1 | 50 | 2 | 25 | 25 | 5000-5600 | / | 7000-8000 | 500 | 4 |
| 3828-2Z | 1/2-20UNF | 38 | 2 | 28 | 30 | 3800-4300 | / | / | 500 | 3 |
| 3828-4Z | 1/2-20UNF | 38 | 4 | 28 | 30 | 7600-8500 | / | 10500-12000 | 800 | 4 |
| 3028-2Z | 3/8-24UNF | 30 | 2 | 28 | 30 | 2700-3100 | 3400-3800 | / | 400 | 3 |
| 2528-4Z | M8 X 1 | 25 | 4 | 28 | 30 | 3900-4300 | / | / | 400 | 4 |
| 2528-2Z | M8 X 1 or 3/8-24UNF | 25 | 2 | 28 | 35 | 1950-2200 | 2200-2500 | / | 300 | 3 |
| 3030-4Z | M10 | 30 | 4 | 30 | 30 | / | 6200-6900 | / | 700 | 4 |
| 3035-2Z | 3/8-24UNF | 30 | 2 | 35 | 40 | 2700-3100 | / | / | 500 | 2 |
| 3035-4Z | M10 X 1 | 30 | 4 | 35 | 30 | 5000-6200 | / | / | 800 | 3 |
| 2535-2Z | M8 X 1 | 25 | 2 | 35 | 40 | 1900-2200 | / | / | 400 | 2 |
| 2540-2Z | 3/8-24UNF | 25 | 2 | 40 | 40 | / | 2000-2300 | / | 500 | 2 |
| 3040-4Z | M10 | 30 | 4 | 40 | 30 | 5500-6200 | / | / | 1000 | 2 |
| 3050-4Z | M8 | 30 | 4 | 50 | 30 | 5500-6200 | / | / | 600 | 2 |
| 1560-2Z | M6 X 0.75 | 15 | 2 | 60 | 60 | / | / | 700-800 | 100 | 1 |
| 1070-2Z | M4 | 10 | 2 | 70 | 200 | / | / | 350-400 | 100 | 1 |
|
The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application) |
||||||||||
| Item No. | Connect screw (Size) | Ceramic diameter (mm) | Quantity of Ceramic (pc) | Resonance frequency (khz) | Resistance (Ω) | Capacitance | Input power (W) | Max. Amplitude (um) | ||
| Yellow | Grey | Black | ||||||||
| 7015-4D | M20 X 1.5 | 70 | 4 | 15 | 15 | 12500-14000 | / | 17000-19000 | 2600 | 11 |
| 6015-4D | M18 X 1.5 | 60 | 4 | 15 | 15 | 9000-10000 | 10000-11000 | / | 2200 | 11 |
| 6015-6D | 1/2-20UNF | 60 | 6 | 15 | 15 | 19000-20500 | / | 23000-25000 | 2600 | 11 |
| 5015-6D | 1/2-20UNF | 50 | 6 | 15 | 15 | 17000-19000 | / | 23000-25000 | 2000 | 11 |
| 5020- 4DS | 1/2-20UNF | 50 | 4 | 20 | 15 | 11000-12000 | 12000-13500 | / | 1300 | 8 |
| 5020-4D | 1/2-20UNF | 50 | 4 | 20 | 15 | 11000-12000 | 12000-13500 | 14500-16000 | 1500 | 8 |
| 5020-6D | 1/2-20UNF | 50 | 6 | 20 | 15 | 19000-21000 | / | 22500-25000 | 2000 | 10 |
| 4020-6D | 1/2-20UNF | 40 | 6 | 20 | 15 | 13500-15000 | / | / | 1500 | 10 |
| 4020-4D | 1/2-20UNF | 40 | 4 | 20 | 15 | 8500-9300/ 9500-10500 | 10000-11000 | 10500-11500 | 900 | 8 |
| 3020-6D | 3/8-24UNF | 30 | 6 | 20 | 15 | 8000-9000 | / | / | 600 | 9 |
| 3030-4D | M8 or M8 X 1 | 30 | 4 | 30 | 20 | / | 6200-6900 | / | 800 | 5 |
| 3535-2D | M8 X 1 | 35 | 2 | 35 | 25 | / | / | 4500-5000 | 600 | 9 |
| 3535-4D | M8 X 1 | 35 | 4 | 35 | 20 | 6600-7400 | / | 9000-10000 | 1000 | 4 |
| 3035-4D | 1/2-20UNF | 30 | 4 | 35 | 20 | 5500-6200 | / | 9200-10200 | 800 | 4 |
| 2535-4D | M8 | 25 | 4 | 35 | 25 | 3900-4300 | / | / | 500 | 4 |
| 3040-2D | M8 | 30 | 2 | 40 | 30 | / | 3400-3800 | / | 500 | 2 |
| 2540-4D | M8 | 25 | 4 | 40 | 30 | 4500-5300 | / | / | 500 | 3 |
| 2040-2D | M8 | 20 | 2 | 40 | 40 | 1100-1300 | 1150-1350 | / | 300 | 2 |
