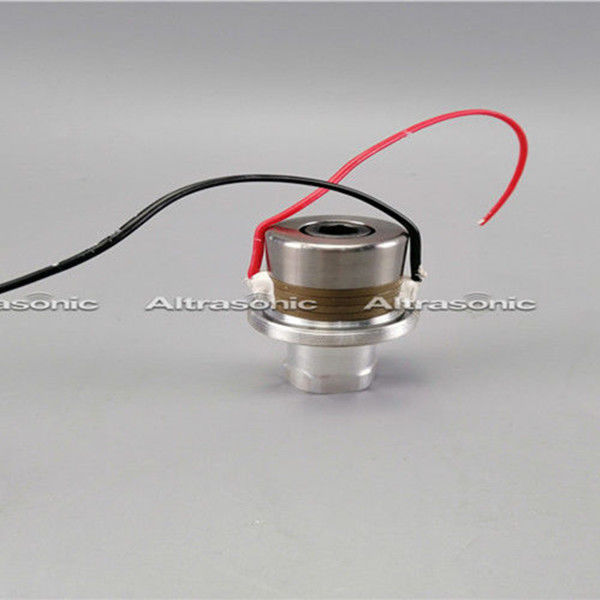

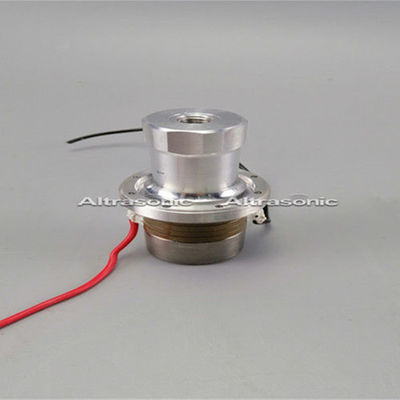

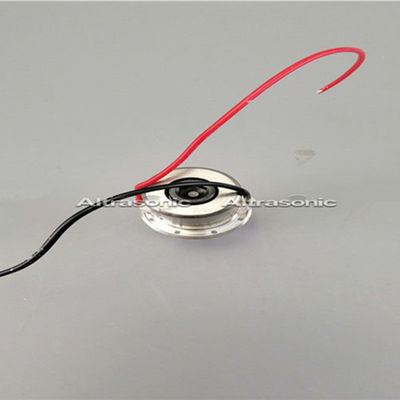

Customized Miniature Ultrasonic Transducer with 4pcs Ceramics M18 Connected Screw

Customized Miniature Ultrasonic Transducer with 4pcs Ceramics M18 Connected Screw
Customized Miniature Ultrasonic Transducer with 4pcs Ceramics M18 Connected Screw Customized Miniature Ultrasonic Transducer with 4pcs Ceramics M18 Connected Screw Customized Miniature Ultrasonic Transducer with 4pcs Ceramics M18 Connected Screw

Large Image :  Customized Miniature Ultrasonic Transducer with 4pcs Ceramics M18 Connected Screw

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSR-35
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 5 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month

Customized Miniature Ultrasonic Transducer with 4pcs Ceramics M18 Connected Screw

Description
Product Name: Ultrasonic Transducer Joint Bolt: M18
Ceramic Diameter: 25mm Type: Rinco Type
Application: Welding Machine Qty Of Ceramic: 4
Amplitude: 12um Frequency: 35K
High Light:

high frequency ultrasonic transducer

,

portable transducer

Customized Miniature Ultrasonic Transducer with 4pcs Ceramics M18 Connected Screw



Specification:



Model HSR-35
Frequency 35K
Output power 900W
Joint bolt M18*1.25
Ceramic disc Diameter 25mm
Quantity of Ceramic discs 4pcs
Bolt Fixing with transducer body
Amplitude 12um
Application Welding





Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Applications:



Ultrasonic transducers are widely used in many industries,several applications are listed in the table below.

Ultrasonic welding Auto parts welding
Ultrasonic Sewing Non-woven fabric sewing
Ultrasonic Cutting and Sealing Packing production line



Competitive Advantages:



1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Detailed Images:



Customized Miniature Ultrasonic Transducer with 4pcs Ceramics M18 Connected Screw 0Customized Miniature Ultrasonic Transducer with 4pcs Ceramics M18 Connected Screw 1

Customized Miniature Ultrasonic Transducer with 4pcs Ceramics M18 Connected Screw 2

Customized Miniature Ultrasonic Transducer with 4pcs Ceramics M18 Connected Screw 3

Customized Miniature Ultrasonic Transducer with 4pcs Ceramics M18 Connected Screw 4
