Product Details:
|
| Product Name: | Ultrasonic Transducer | Amplitude: | 12μm |
|---|---|---|---|
| Ceramic Diameter: | 25mm | Qty Of Ceramic: | 2pcs |
| Application: | Welding | Joint Bolt: | M18*1.25 |
| Output Power: | 900W | Frequency: | 35K |
| Highlight: | high frequency ultrasonic transducer,portable transducer |
||

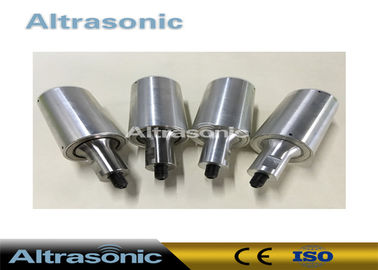

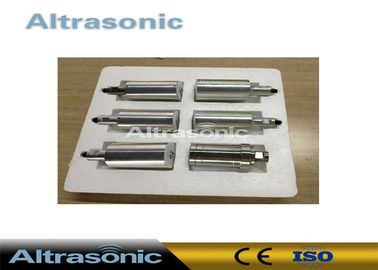

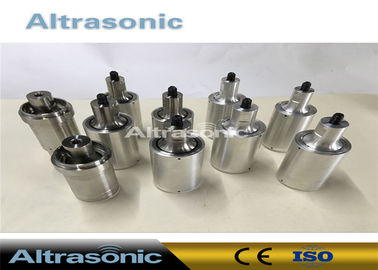

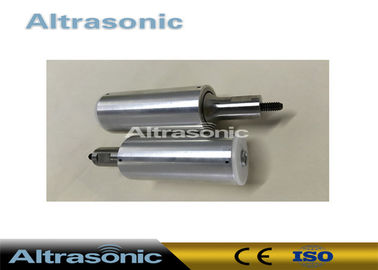

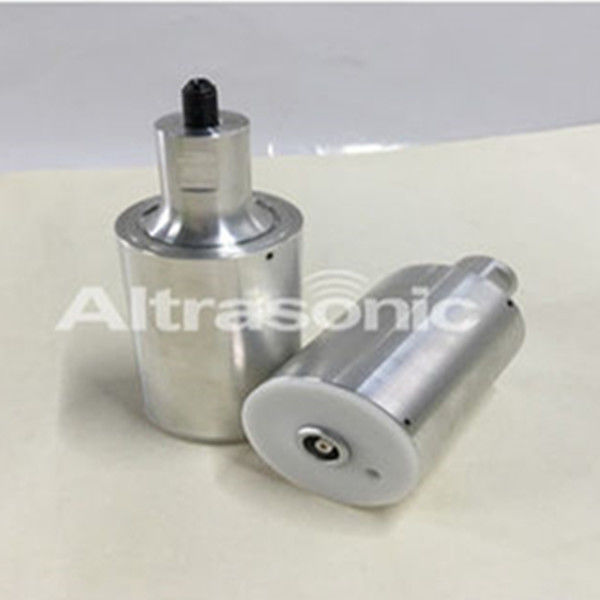

Replacement Rinco 35K Ultrasonic Transducer for Welding Machine
Introduction:
The Replacement Converter for Rinco 35khz machine Direct replacement for the Rinco 35khz machine.It is cost-effective, all components are brand new, with good performance.
Specifications:
| Model | HSR-35 |
| Frequency | 35K |
| Output power | 900W |
| Joint bolt | M18x1.25 |
| Ceramic disc Diameter | 25mm |
| Quantity of Ceramic discs | 2pcs |
| Bolt | Fixing with transducer body |
| Amplitude | 12um |
| Application | Welding machine |
Description:
The transducer converts energy through the piezoelectric effect of the ceramic plate.It is composed of ceramic sheet, bolt, electrode sheet, front end and back end.This replacement Rinco 35K ultrasonic transducer delivers lower cost, rugged quality and superior value.The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.
Application:
Transducers are widely used in many aspects of life, such as automobile and consumer industries.Below mainly from the consumer industry to specify its application.
|
Consumer industry |
Increase of humidity level |
| Coating non-woven fabric, paper, etc… | |
| Injection moisture into a gas stream | |
| Applying minute amount of oil, fragrance or flavour onto a product |
Competitive Advantages:
1.Spray patterns are easily shaped for precise coating applications.
2.Highly controllable spray produces reliable, consistent results.
3.Corrosion-resistant titanium and stainless steel construction.
4.Ultra-low flow rate capabilities, intermittent or continuous.
5.No moving parts to wear out.
6.Non-clogging.
FAQ:
1.Q:Why are the transducers burned out?
When working, the maximum power of the transducer is exceeded;Too high voltage during operation;The temperature is too high;Positive and negative spark, short circuit.
2.Q:What determines the resonant frequency of the transducer?
Its frequency is determined by the length and material of the transducer.
