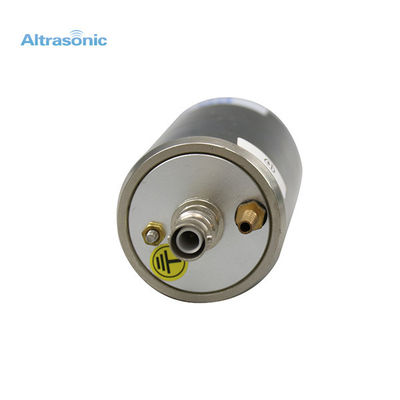

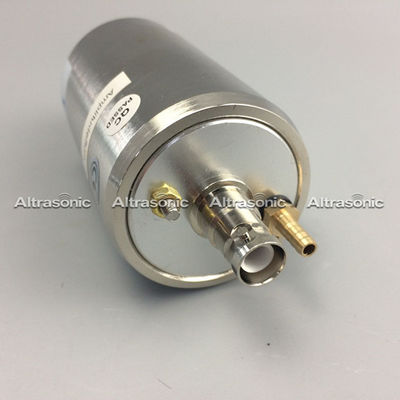

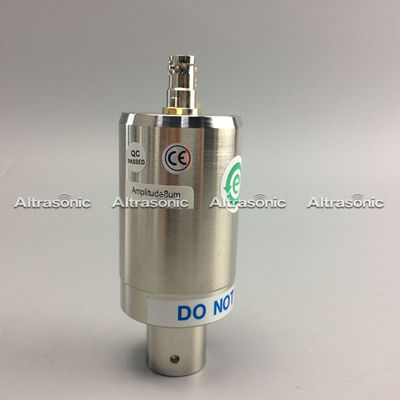

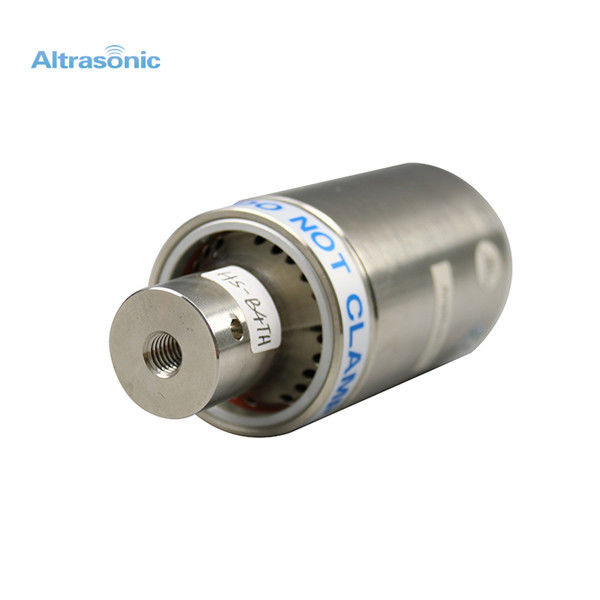

High - Frequency Ultrasonic Welding Transducer 40 Khz Ultrasonic Core

High - Frequency Ultrasonic Welding Transducer 40 Khz Ultrasonic Core
High - Frequency Ultrasonic Welding Transducer 40 Khz Ultrasonic Core High - Frequency Ultrasonic Welding Transducer 40 Khz Ultrasonic Core High - Frequency Ultrasonic Welding Transducer 40 Khz Ultrasonic Core High - Frequency Ultrasonic Welding Transducer 40 Khz Ultrasonic Core

Large Image :  High - Frequency Ultrasonic Welding Transducer 40 Khz Ultrasonic Core

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-B4TH
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 working days
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month

High - Frequency Ultrasonic Welding Transducer 40 Khz Ultrasonic Core

Description
Product Name: 40Khz High Frequency Ultrasonic Welding Transducer Without Housing Frequency: 40KHz
Power: 800W Connect Screw: M8*1.25
Ceramic Diameter: 25mm Qty Of Ceramic: 4Pcs
Application: Welding
High Light:

high frequency ultrasonic transducer

,

portable transducer

The Ultrasonic Core ,40 Khz High Frequency Ultrasonic Transducer For Welding

Specification:

Model HS-B4TH
Frequency 40khz
Output power 800watt
Joint bolt M8*1.25
Ceramic disc Diameter 25 mm
Quantity of Ceramic discs 4 pcs
Capacitance 4.2nf
Application Welding



Description:

Ultrasonic welding transducer is one of main products of Altrasonic, which used the piezoelectric effort to realize transduction between electric and sound energy.

Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.



Applications:

Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.





Competitive Advantages:

1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation





What we can do for you:

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.









High - Frequency Ultrasonic Welding Transducer 40 Khz Ultrasonic Core 0High - Frequency Ultrasonic Welding Transducer 40 Khz Ultrasonic Core 1



High - Frequency Ultrasonic Welding Transducer 40 Khz Ultrasonic Core 2
