Product Details:
|
| Product Name: | Welding Transducer | Frequency: | 35Khz |
|---|---|---|---|
| Power: | 1000W | Connect Screw: | M10*1.25 |
| Capacitance: | 5-8nF | Application: | Welding |
| Highlight: | high frequency ultrasonic transducer,portable transducer |
||
Altrasonic Selling Not Only Transducer Of 35Khz Herrmann Replacement Type For Welding,But Also Services
Specifications:
| Model | Replacement Herrmann 35K |
| Frequency | 35 khz |
| Output power | 1000 watt |
| Joint bolt | M10*1.25 |
| Capacitance | 5000-8000pf |
| Amplitude | 10 um |
| Application | welding machine |
Description:

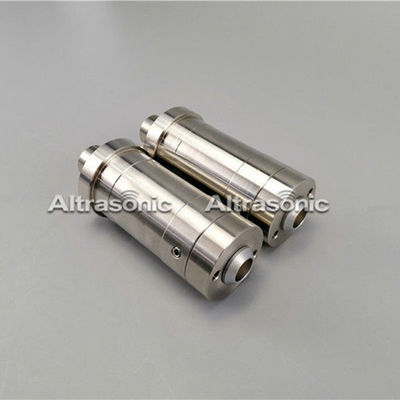

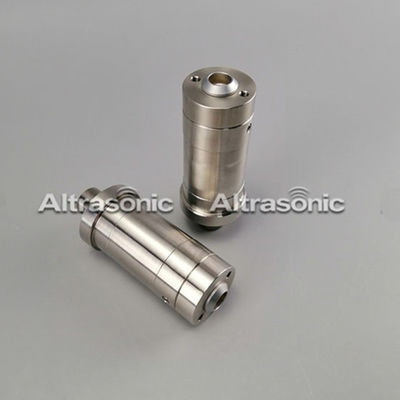

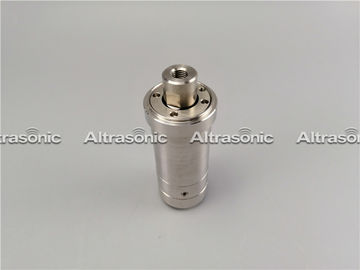

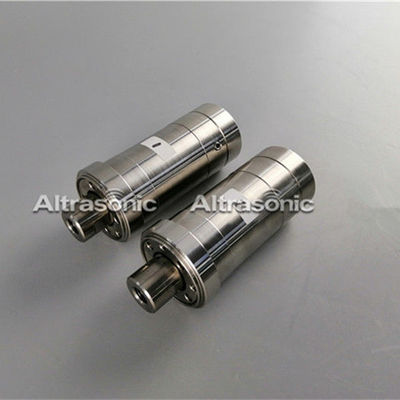

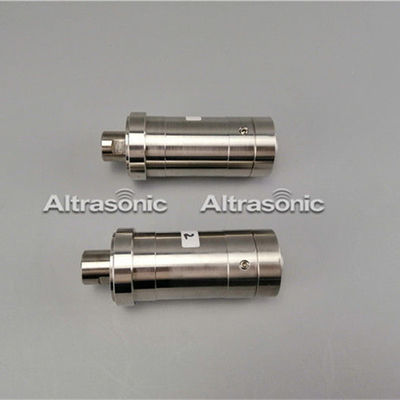

The 35 kHz Replacement Ultrasonic Herrmann Converters 35/1000-S-IP65 Type is applied to Herrmann type ultrasonic welding machine.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Competitive Advantages:
Service: Timely feedback; Free design; 1 year Warranty.
Quality: Full testing before shipping; Our reputation from customer.
Warranty:
We offer the same warranty as the OEM, namely, one year one-time replacement.
Simply ship the broken unit back to arrive within one year of original shipment, and it will be replaced (one time).
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
