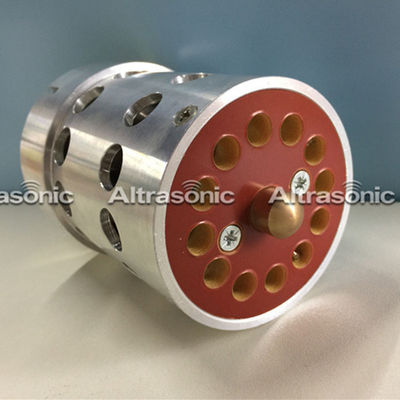

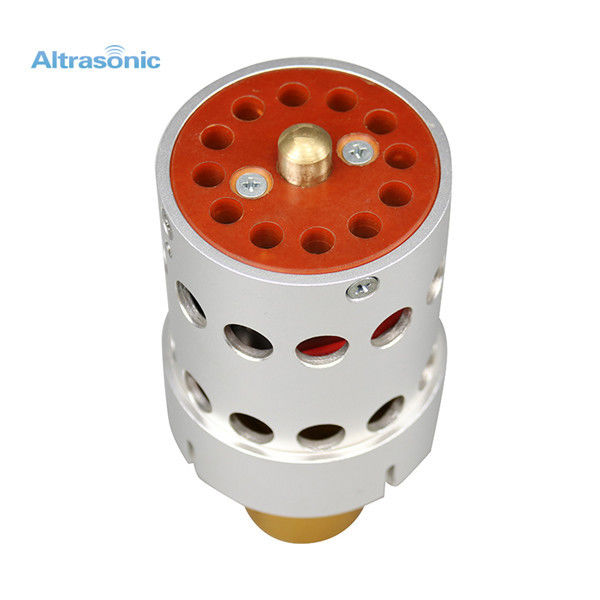

2000W Ultrasonic Transducer 20 Khz Dukane replacement 110-3122

2000W Ultrasonic Transducer 20 Khz Dukane replacement 110-3122
2000W Ultrasonic Transducer 20 Khz Dukane replacement 110-3122 2000W Ultrasonic Transducer 20 Khz Dukane replacement 110-3122 2000W Ultrasonic Transducer 20 Khz Dukane replacement 110-3122

Large Image :  2000W Ultrasonic Transducer 20 Khz Dukane replacement 110-3122

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-D110-3122
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 1000 units per month

2000W Ultrasonic Transducer 20 Khz Dukane replacement 110-3122

Description
Product Name: Replacement Transducer For Dukane 110-3122 Frequency: 20 Khz
Ceramic Diameter: 50 Mm Capacitance: 11 NF
Power: 2000W Application: Welding Machine
Amplitude: 20 Um Ceramic Disc: 4 Pcs
Material Of Booster: Titanium, Aluminum, Steel Materials Optional Protective Housing: Aluminum And Stainless Steel Optional
High Light:

high frequency ultrasonic transducer

,

portable transducer

2000W Ultrasonic Transducer 20 Khz Dukane replacement 110-3122



Specifications:



Model

HS-D110-3122

Frequency

20 khz

Output power

2000 watt

Joint bolt

1/2-20UNF

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

4 pcs

Capacitance

11nF

Amplitude

20 um

Application

welding machine



Description:



The 20Khz high power Ultrasonic Welding Transducer , replacement converter for Dukane is applied to Dukane type 110-3122 ultrasonic welding machine.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.







Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
 clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.

2000W Ultrasonic Transducer 20 Khz Dukane replacement 110-3122 0



Competitive Advantages:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Warranty:



We offer the same warranty as the OEM, namely, one years one-time replacement.

Simply ship the broken unit back to arrive within one years of original shipment, and it will be replaced (one time).



What we can do for you:

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, 110-3168, and Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

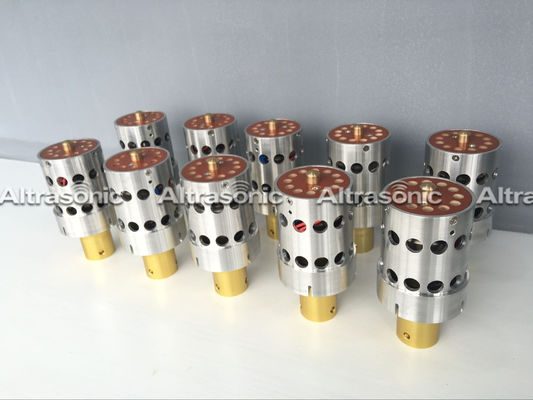

2000W Ultrasonic Transducer 20 Khz Dukane replacement 110-3122 12000W Ultrasonic Transducer 20 Khz Dukane replacement 110-3122 22000W Ultrasonic Transducer 20 Khz Dukane replacement 110-3122 3
