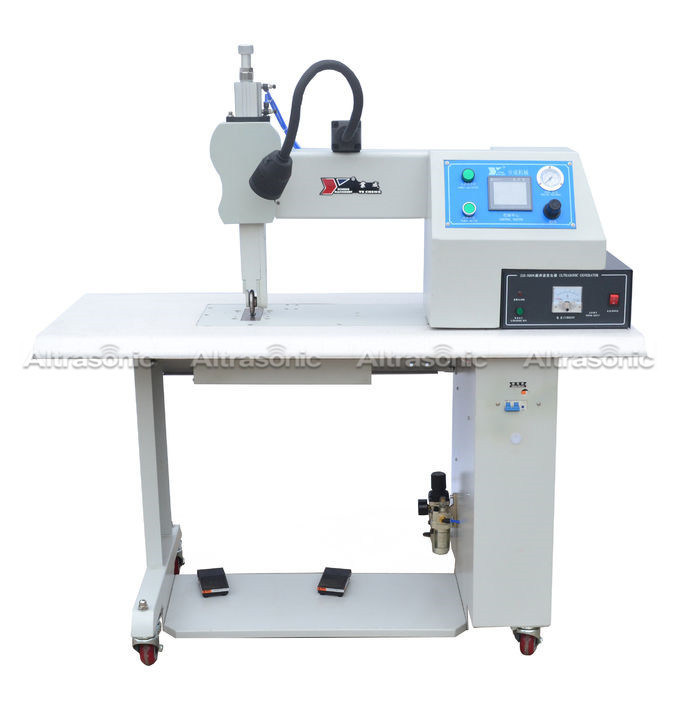

For fabric sewing ---- 35khz Ultrasonic Sealing Machine with Titanium Wheel
The work method of Seamless sewing part is completely imitating traditional sewing machine. The biggest characteristic is the ultrasonic transmit horn work direction is same with the sewed cloth. Which will make the sewed point of the cloth are even, flat and fastness. Through suitable design, it can reach perfect sewing effectiveness.
|Rotary Welding Horns Width||12 mm|
|Power Adjust Method||File or Continuous|
|The Horns Surface Hardness||More than HRC56|
|Working air pressure||3-4kg/cm2|
Ultrasonic no sewing machine can stitch the fabric made of nylon, PVC, PU, TPU and TC. The high frequency can stick the fabric instead of needle and thread when ultrasonic machine works. It is a marked feature of this type machine that welding time is shorter and there is smokeless and no irritant taster especially for plastic materials. At the same this machine can improve the quality and improve the raise the efficiency of the products.
With ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear. These profiles ensure focusing of the energy input and therefore short sealing times between 100 and 200 milliseconds. With ultrasonic sealing heat is generated at the inside of the film, not by heat input from the outside as is the case with heat sealing, for example. The tools (sonotrode and anvil) that come into direct contact with the packaging material, remain cold during the entire weld process. The support layer remains almost cold and upon termination of energy input, the heat dissipates faster to the outside due to the temperature difference between the support layer and the sealing layer so that the hot-tack resistance is significantly higher.
Ultrasonic lace sewing machine used ultrasonic vibration and steel moulds, the above processing will be finished together with pressure.
Usually used in clothing industry is the ultrasonic lace machine, which is mainly used in cutting and welding cloth. Owing to its transmit horn is a plane, so it only can turn its own geometric center and cant turn the same direction with the cloth. Which make the sewed point of the cloth is unevenness. The transmit horn of Seamless sewing part is a circumference horn, and can turn around . For the cloth, it is jointing with the cloth and working at the same time. The ultrasonic seamless sewing part advance ultrasonic lace machine and its market prospects are very bright.
Fabric 35khz Ultrasonic Sealing Machine with Titanium Wheel
