Product Details:
|
| Frequency: | 35Khz | Max. Output Power: | 1000watt |
|---|---|---|---|
| Application: | Sealing, Cutting Or Welding PU/PVC/TPU/Nylon | Frequency Tuning Method: | Frequency Tuning Method |
| Working Speed: | 0-20m/min | Roller Size: | Width:0-60mm,Diameter:Ø50mm |
| Net Weight: | 99kg | Welding Width: | 1-5 MM |
| Highlight: | ultrasonic sealer,ultrasonic sealing equipment |
||
Description:

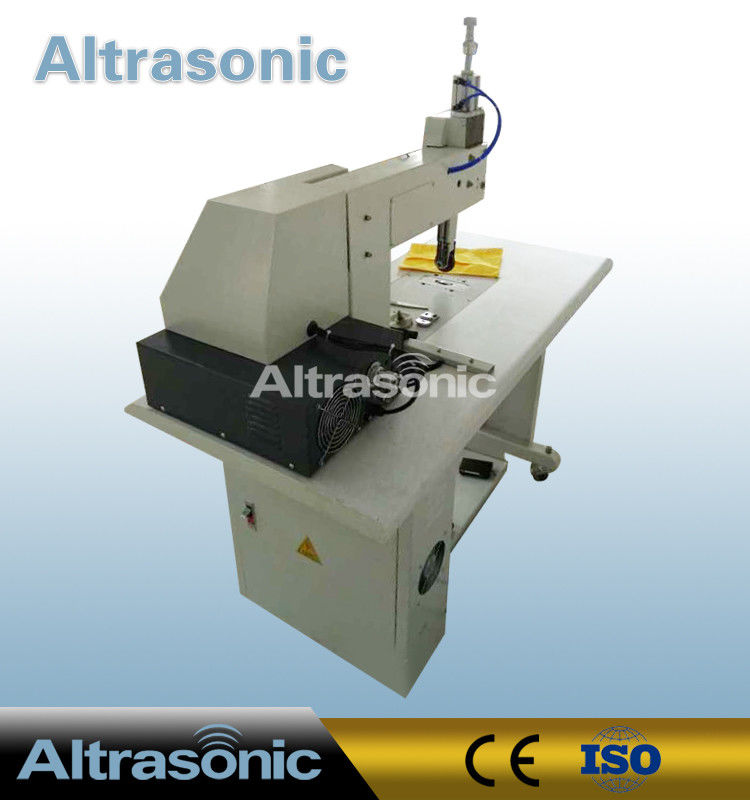

The 35Khz Ultrasonic Sealing Machine, also know as Ultrasonic Sewing Machine. It is specially designed for sewing of thermoplastic fabrics such as nylon fabric, PVC,PU,TPU fabric and non-woven fabric, completely replace the traditional sewing machine, No need needle and thread.
Equipped with different horn designs, it can be sealing, cutting and sewing.
Technique Parameter:
| Power supply | 220V/110V |
| Rated power | 1000W |
| Rated current | 6A |
| Ultrasonic frequency | 35KHz |
| Welding width | 1-5MM |
| Welding speed | 1-10M/Min |
| Working air pressure | 3-4KG/CM2 |
| Machine dimensions(L*W*H) | 1300*600*1100MM |
| Net weight | 99KGS |
Advantages:
Application:
Apply to lace clothing, ribbon,trim,filter,decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags and also for the hard cloth sewing.
Functional description of lace sewing machine:
The Core parts of Ultrasonic sealing machine
Workshop:
