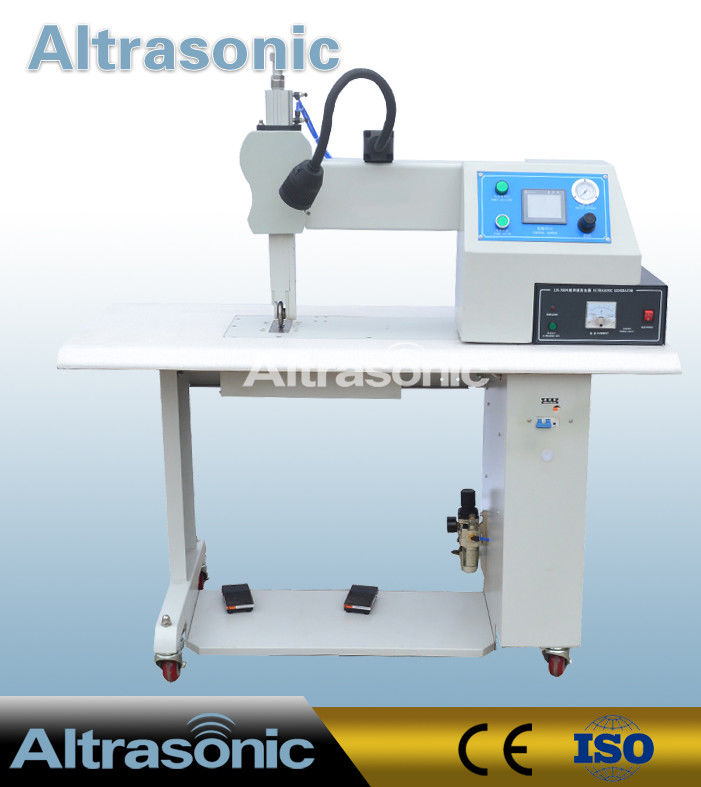

35Khz Ultrasonic Seamless Sealing Machine with 12mm Titanium Wheel for Welding

35Khz Ultrasonic Seamless Sealing Machine with 12mm Titanium Wheel for Welding
35Khz Ultrasonic Seamless Sealing Machine with 12mm Titanium Wheel for Welding 35Khz Ultrasonic Seamless Sealing Machine with 12mm Titanium Wheel for Welding

Large Image :  35Khz Ultrasonic Seamless Sealing Machine with 12mm Titanium Wheel for Welding

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-35 series
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 7 working days after receipt the total amount
Payment Terms: T/T, Western Union
Supply Ability: 500 Set per month

35Khz Ultrasonic Seamless Sealing Machine with 12mm Titanium Wheel for Welding

Description
Frequency: 35Khz Max. Output Power: 1000watt
Application: Sealing, Cutting Or Welding PU/PVC/TPU/Nylon Frequency Tuning Method: Frequency Tuning Method
Components: Ultrasonic Transducer, Generator And Wheel Power Adjusting Method: 30%-99%
Net Weight: 99kg Welding Width: 1-5 MM
High Light:

ultrasonic sealer

,

ultrasonic sealing equipment

35Khz Ultrasonic Seamless Sealing Machine

with 12mm Titanium Wheel for Welding



Replacement Traditional Sewing Machine







Description:



The 35Khz Ultrasonic Sealing Machine, also know as Ultrasonic Sewing Machine. It is specially designed for sewing of thermoplastic fabrics such as nylon fabric, PVC,PU,TPU fabric and non-woven fabric, completely replace the traditional sewing machine, No need needle and thread.

Equipped with different horn designs, it can be sealing, cutting and sewing.



35Khz Ultrasonic Seamless Sealing Machine with 12mm Titanium Wheel for Welding 0





35Khz Ultrasonic Seamless Sealing Machine with 12mm Titanium Wheel for Welding 1



35Khz Ultrasonic Seamless Sealing Machine with 12mm Titanium Wheel for Welding 2



Technique Parameter:



Power supply 220V/110V
Rated power 1000W
Rated current 6A
Ultrasonic frequency 35KHz
Welding width 1-5MM
Welding speed 1-10M/Min
Working air pressure 3-4KG/CM2
Machine dimensions(L*W*H) 1300*600*1100MM
Net weight 99KGS





Advantages:

  • ECO friendly
  • Lower noise, zero harm to human ears
  • Improve production speed, high output
  • The sewed points of the cloth are flat, perfect sewing effect
  • LCD screen indication
  • Higher precision and small step size



Application:



Apply to lace clothing, ribbon,trim,filter,decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags and also for the hard cloth sewing.







The Core parts of Ultrasonic sealing machine

35Khz Ultrasonic Seamless Sealing Machine with 12mm Titanium Wheel for Welding 3





Workshop:



35Khz Ultrasonic Seamless Sealing Machine with 12mm Titanium Wheel for Welding 4
