Product Details:
|
| Product Name: | Welding Transducer | Frequency: | 35Khz |
|---|---|---|---|
| Power: | 1000W | Connect Screw: | M8*15 |
| Capacitance: | 5-8nF | Application: | Welding |
| Highlight: | high frequency ultrasonic transducer,portable transducer |
||
Attractive Ultrasonic Welding Transducer , 35Khz Transducer With Rugged 4 Pcs Piezoceramics
Specifications:
| Model | Replacement Herrmann 35K |
| Frequency | 35 khz |
| Output power | 1000 watt |
| Joint bolt | M18 * 1.5 |
| Capacitance | 5000-8000pf |
| Amplitude | 10 um |
| Application | welding machine |
Description:

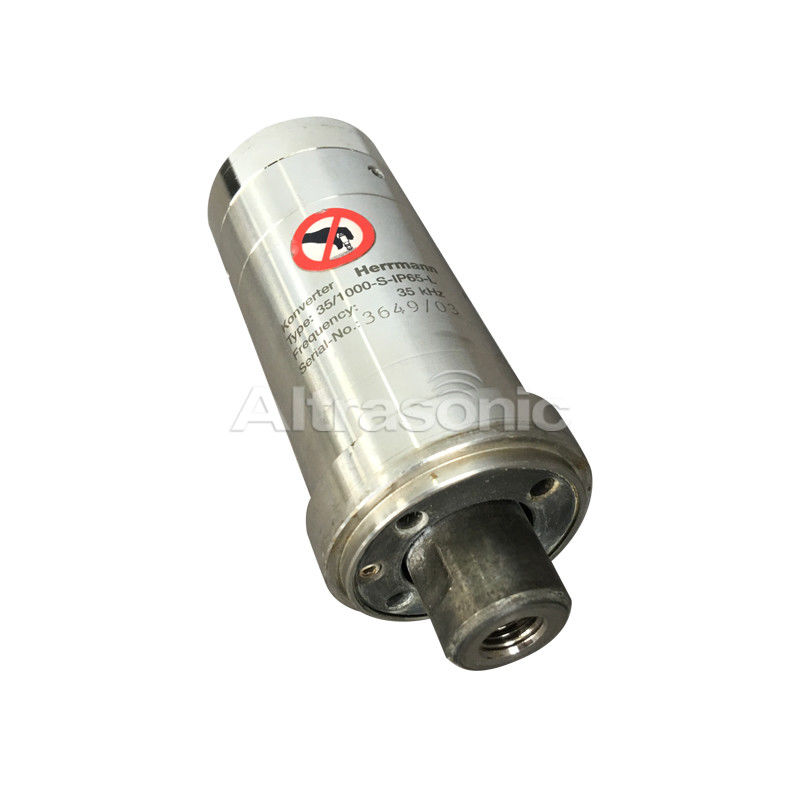

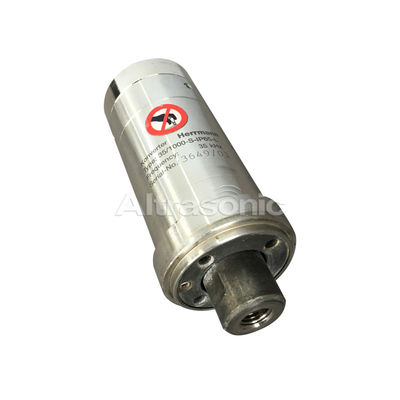

The 35 kHz Replacement Ultrasonic Herrmann Converters 35/1000-S-IP65 Type is applied to Herrmann type ultrasonic welding machine.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Competitive Advantage:
Service: Timely feedback; Free design; 1 year Warranty.
Quality: Full testing before shipping; Our reputation from customer.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
Attractive Herrmann 35Khz Transducer Replacement With Rugged 4 Pcs Piezoceramics
