Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Joint Bolt: | 1/2-20UNF |
|---|---|---|---|
| Ceramic Diameter: | 50mm | Capacitance: | 11 NF |
| Application: | Welding | ||
| Highlight: | high frequency ultrasonic transducer,portable transducer |
||

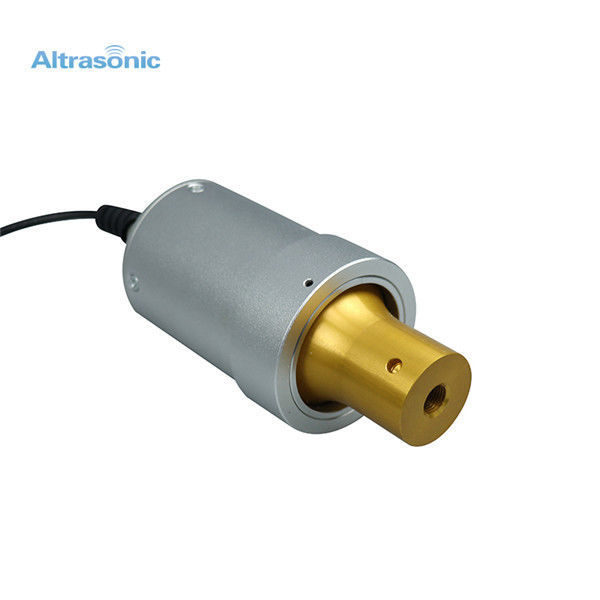

High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing
Specifications:
|
Model |
HS-D41S30 |
|
Frequency |
20khz |
|
Output power |
1000-3000watt |
|
Joint bolt |
1/2-20UNF |
|
Ceramic disc Diameter |
50mm |
|
Quantity of Ceramic discs |
4 pcs |
|
Capacitance |
11nF |
|
Amplitude |
20um |
|
Application |
Welding |
Description:
The 20Khz high power Ultrasonic Welding Transducer , replacement converter for Dukane 41S30 is applied to Dukane type ultrasonic welding machine.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Replacement Item:
|
Item No |
Connect Screw (Size) |
Ceramic diameter (mm) |
Qty of ceramic (PC) |
Frequency(khz) |
Resistance(Ω) |
Color of ceramic |
Capacitance |
Input Power (W) |
|
Branson CJ20 |
1/2-20UNF |
50 |
6 |
19.90 |
10 |
Yellow |
20000 |
3300 |
|
Branson 502 |
1/2-20UNF |
50 |
6 |
19.90 |
10 |
Yellow |
20000 |
3300 |
|
Branson 402 |
M8*1.25 |
25 |
4 |
39.60 |
10 |
Yellow |
4200 |
800 |
|
Branson 4TH |
M8*1.25 |
25 |
4 |
39.90 |
10 |
Yellow |
4200 |
800 |
|
Branson 902 |
1/2-20UNF |
40 |
4 |
19.85 |
10 |
Yellow |
8000 |
1100 |
|
Branson 922J |
1/2-20UNF |
50 |
6 |
19.90 |
10 |
Yellow |
20000 |
2200 |
|
Dukane 40K |
M8*1.25 |
35 |
2 |
39.80 |
5 |
Gray |
3000 |
800 |
|
Dukane 20K |
1/2-20UNF |
50 |
2 |
19.50 |
10 |
Yellow |
11000 |
2000 |
|
Dukane 110-3122 |
1/2-20UNF |
50 |
4 |
19.50 |
10 |
Yellow |
11000 |
2000 |
|
Dukane 110-3168 |
1/2-20UNF |
45 |
2 |
19.50 |
10 |
Yellow |
4000 |
800 |
|
Rinco 35K |
M8*1.25 |
25 |
2 |
34.80 |
50 |
Yellow |
2000 |
900 |
|
Rinco 20K |
M16*2 |
50 |
2 |
19.90 |
50 |
Yellow |
5000 |
3000 |
|
Telsonic 35K |
M8*1.25 |
25 |
4 |
35.00 |
5 |
Yellow |
4000 |
1200 |
|
Telsonic 20K |
1/2-20UNF |
50 |
4 |
20.00 |
3 |
Yellow |
10000 |
2500 |
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
