Product Details:
|
| Product Name: | NTK Type Piezoelectric 50KHz Ultrasonic Welding Transducer With 4 Pieces Ceramic | Frequency: | 50KHz |
|---|---|---|---|
| Power: | 600W | Connect Screw: | M8 |
| Ceramic Diameter: | 30mm | Qty Of Ceramic: | 4Pcs |
| Application: | Welding | ||
| Highlight: | high frequency ultrasonic transducer,portable transducer |
||

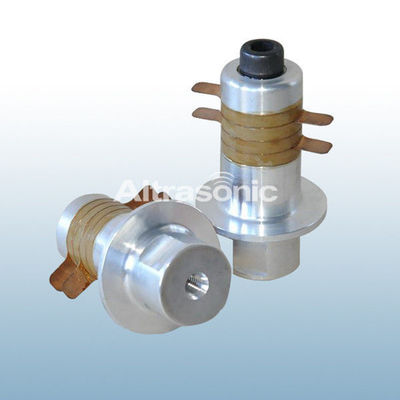

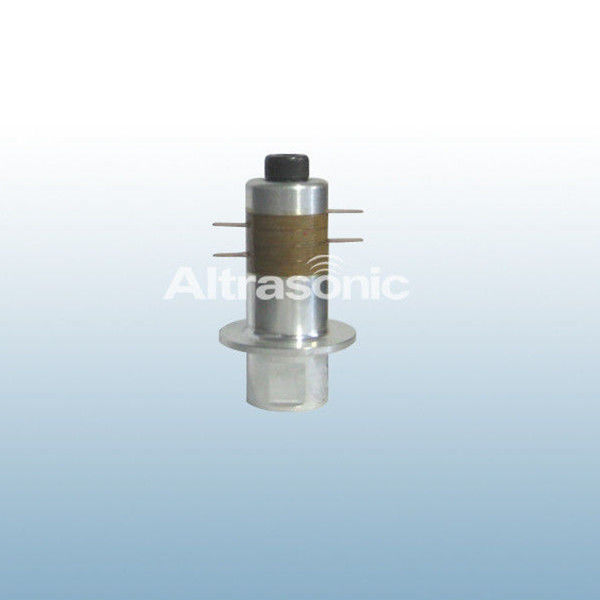

Piezoelectric 50KHz Ultrasonic Welding Transducer With 4 Pieces Yellow Ceramic
Specifications:
| Model | HS-3050-4Z |
| Frequency | 50khz |
| Output power | 600watt |
| Joint bolt | M8 |
| Ceramic disc Diameter | 30 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 5.5-6.2 nf , |
| Amplitude | 4um |
| Application | Welding |
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applications:
| Ultrasonic welding machine |
All material with thermoplasticity can use Ultrasonic welding machine , it can welding the material more easy and stable.Such like plastic, fabric, ABS, nonwovens. |
| Ultrasonic cutting machine |
Ultrasonic food cutting is popular because the perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same. |
| Ultrasonic sewing machine |
Ultrasonic sewing can sewing the material without any cotton, and keep longer time.
|
Competitive Advantage:
1. Imported ceramic discs and superior aluminum raw materials.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
