Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Joint Bolt: | 1/2-20UNF |
|---|---|---|---|
| Ceramic Diameter: | 50mm | Capacitance: | 20nf |
| Type: | Branson | Application: | Welding |
| Frequency: | 20kHz | Power: | 3300w |
| Highlight: | high frequency ultrasonic transducer,portable transducer |
||
Replacement Branson CJ20 Ultrasonic Welding Transducer 20khz With Protect Housing
Specifications:
Model | Branson CJ20 Replacement |
Frequency | 20khz |
Output power | 3300watt |
Joint bolt | 1/2-20UNF |
Ceramic disc Diameter | 50 mm |
Quantity of Ceramic discs | 6pcs |
Capacitance | 20nf |
Amplitude | 20um |
Application | Welding |
Description:
An ultrasonic transducer is an energy conversion device that converts an alternating electrical signal into an acoustic signal or converts an acoustic signal in an external sound field into an electrical signal in an ultrasonic frequency range. It is a key device in ultrasonic technology, and its performance is good or bad. It is directly related to the effect and scope of application of ultrasonic application technology. Due to the wide range of applications of ultrasonic technology and the emergence of new ultrasonic technologies, there are many types of ultrasonic transducers.
Applications:
Ultrasonic welding converts a 50/60 Hz current into 15, 20, 30 or 40 KHz of electrical energy through an ultrasonic generator. The converted high frequency electrical energy is again converted by the transducer into a mechanical motion of the same frequency, and then the mechanical motion is transmitted to the welding head through a set of horn devices that can change the amplitude. The horn transfers the received vibrational energy to the joint of the workpiece to be welded, in which the vibrational energy is converted into thermal energy by friction to melt the plastic. Ultrasound can be used not only to weld hard thermoplastics, but also to fabrics and films.
Ultrasonic welding machine | All material with thermoplasticity can use Ultrasonic welding machine , |
Ultrasonic cutting machine | Ultrasonic food cutting is popular because the perfect edge. |
Ultrasonic sewing machine | Ultrasonic sewing can sewing the material without any cotton, and keep |
Applied Range:
Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),for use with all 20KHz 2000 and 2000X actuator and IW systems.
Competitive Advantages:
1. Titanium materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

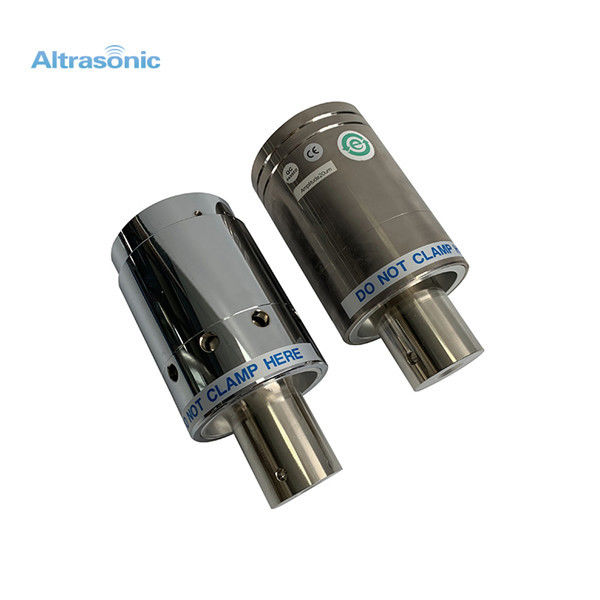

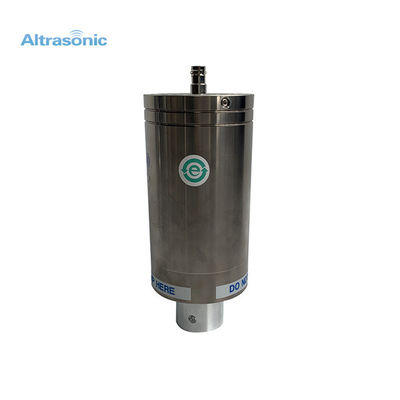

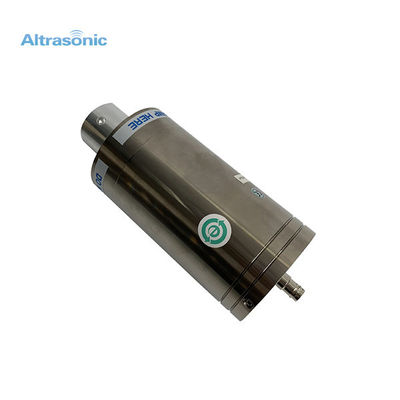

Detailed Images:
